OPTIBEAM SE7EN 7" 9159LM REF:30

| Product Number | 1605-NS2087 |
| Model Name | Se7en |
| Shape | Round |
| Diameter | 7” / 178 mm |

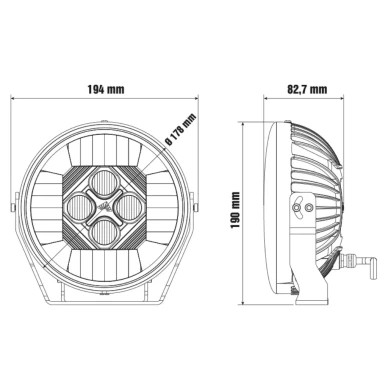

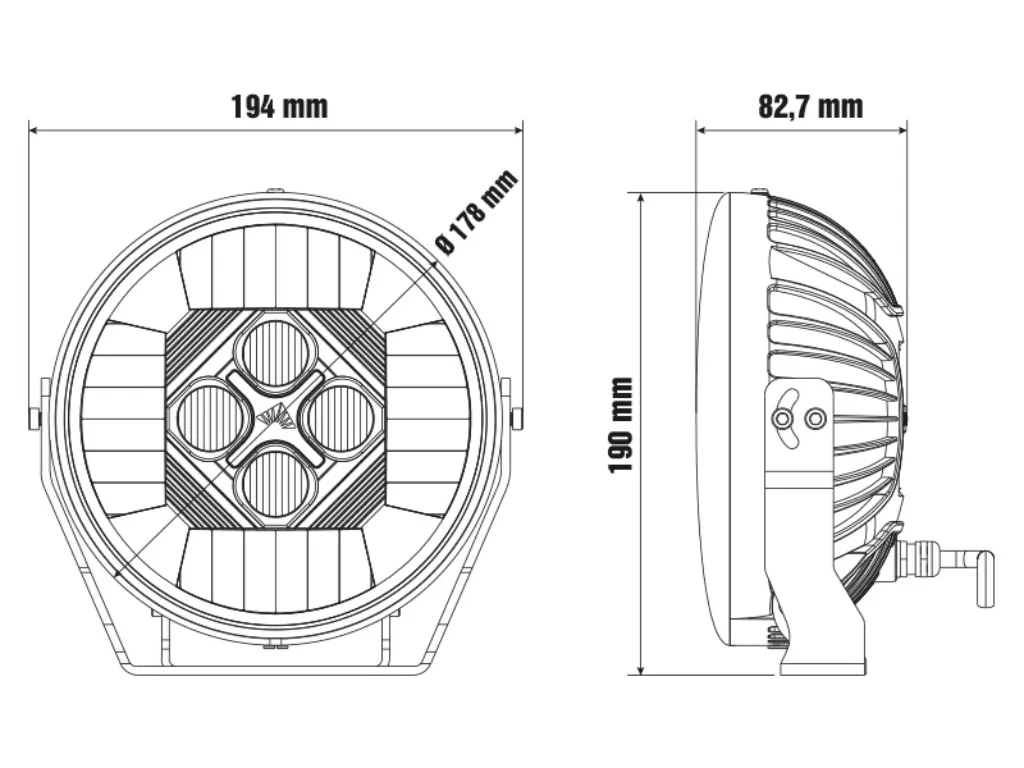

| Dimensions | Ø 178 × 83 mm |
| Weight | 1.60 kg |
| Voltage | 9–36 V |
| LED | 8 pcs |
| Theoretical Luminous Flux | 10,400 lm |
| Measured Luminous Flux | 9,159 lm |
| Light Pattern | Wide |
| Color Temperature | 5500 K |
| Reference Number | 30 |
| Double Up Range, 1 lux | 500 m |
| Position Light | White / amber, X-shaped |
| Current Consumption | 11.16 A @ 13.7 V |
| Connector | 4-pin DT |
| Cable Length | 850 mm |
| Mounting | Bottom foot and U-bracket |
| Housing Color | Black |
| IP Rating | IP68 |
| Approvals | R148, R149, R10 |
| Warranty | 36 months |
Description
Optibeam Se7en – powerful 7” LED auxiliary light with wide beam pattern

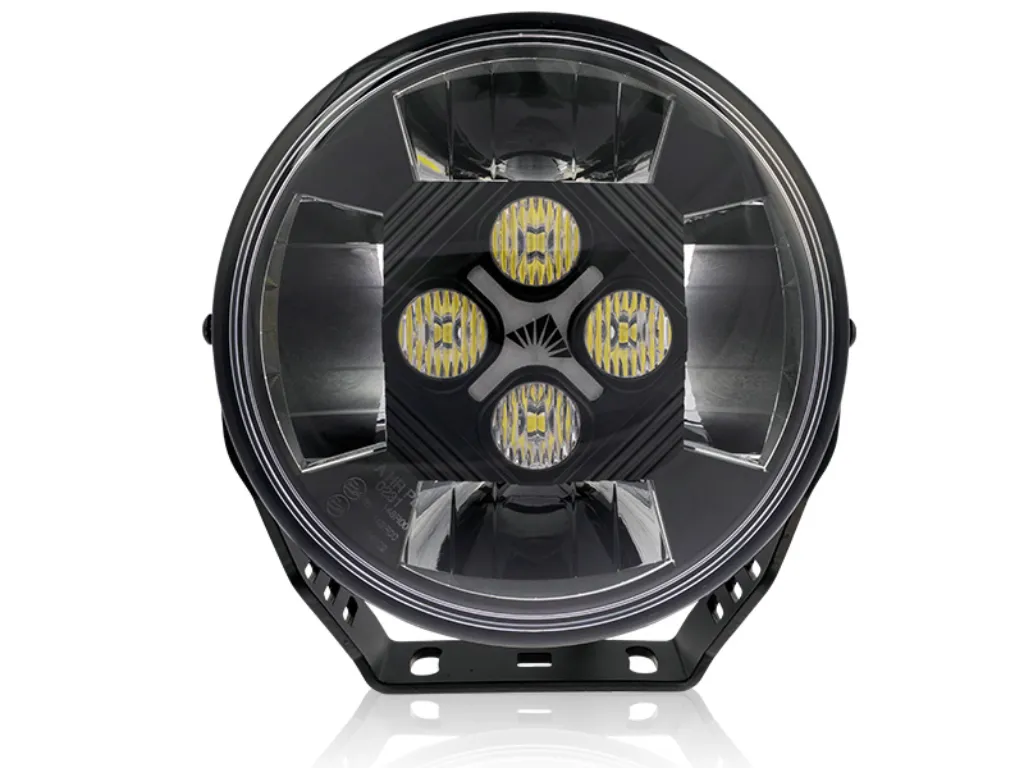

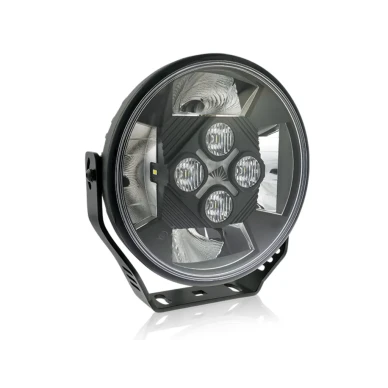

Optibeam Se7en is a powerful and refined 7” round LED auxiliary light that combines long-range illumination, an exceptionally wide beam pattern, and striking design. The Se7en is engineered to provide effective lighting both far ahead and to the sides of the road, making it an excellent choice for passenger cars, SUVs, vans, and heavy-duty vehicles.

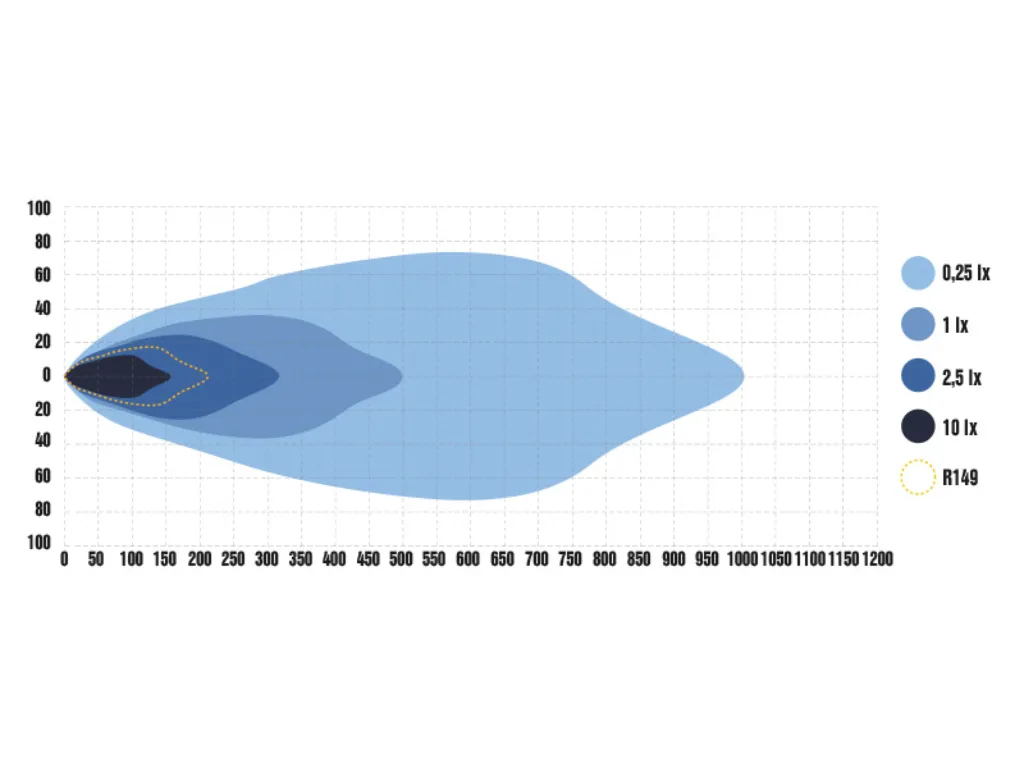

Eight LEDs deliver a measured light output of 9159 lumens. With the Double Up function, the light reaches up to 500 meters at 1 lux intensity. The wide beam pattern provides ample illumination to the road edges and nearby areas.
The 5500 K color temperature offers bright yet comfortable lighting for nighttime driving. The reference number is 30.

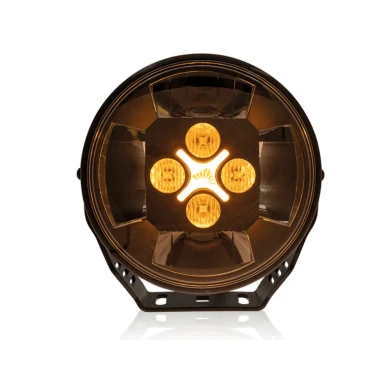

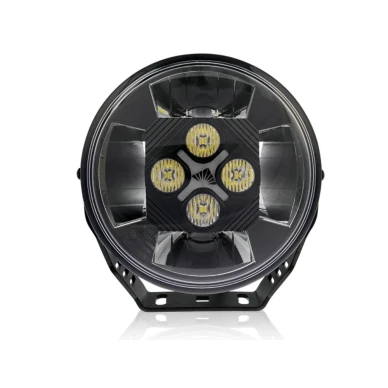

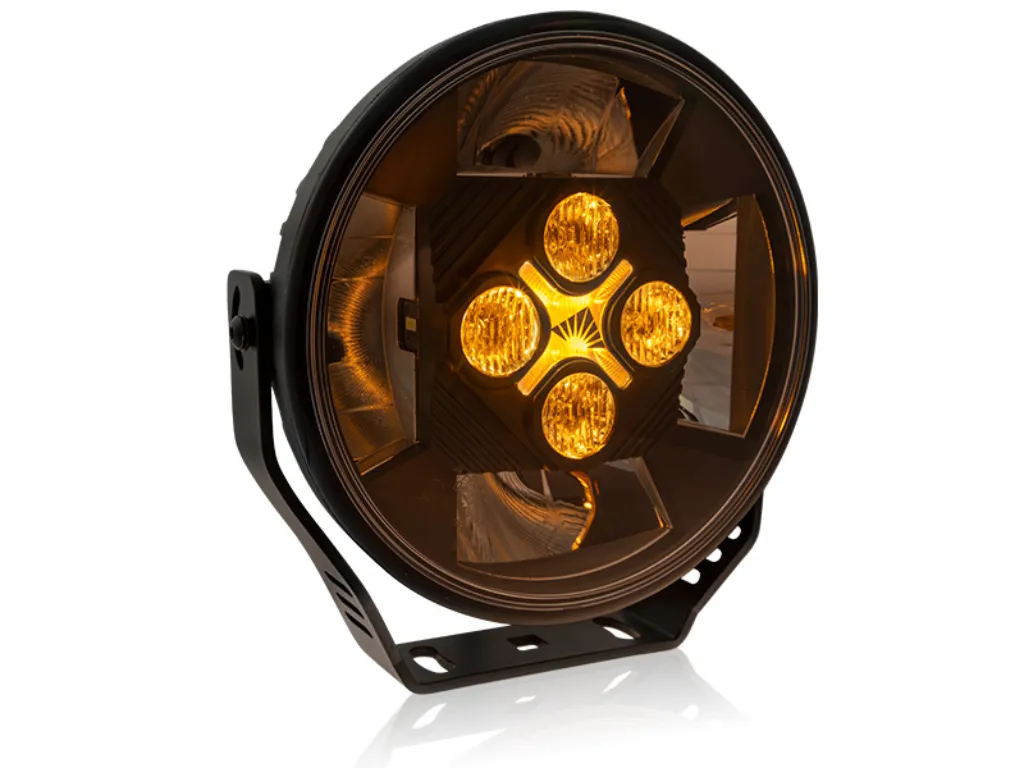

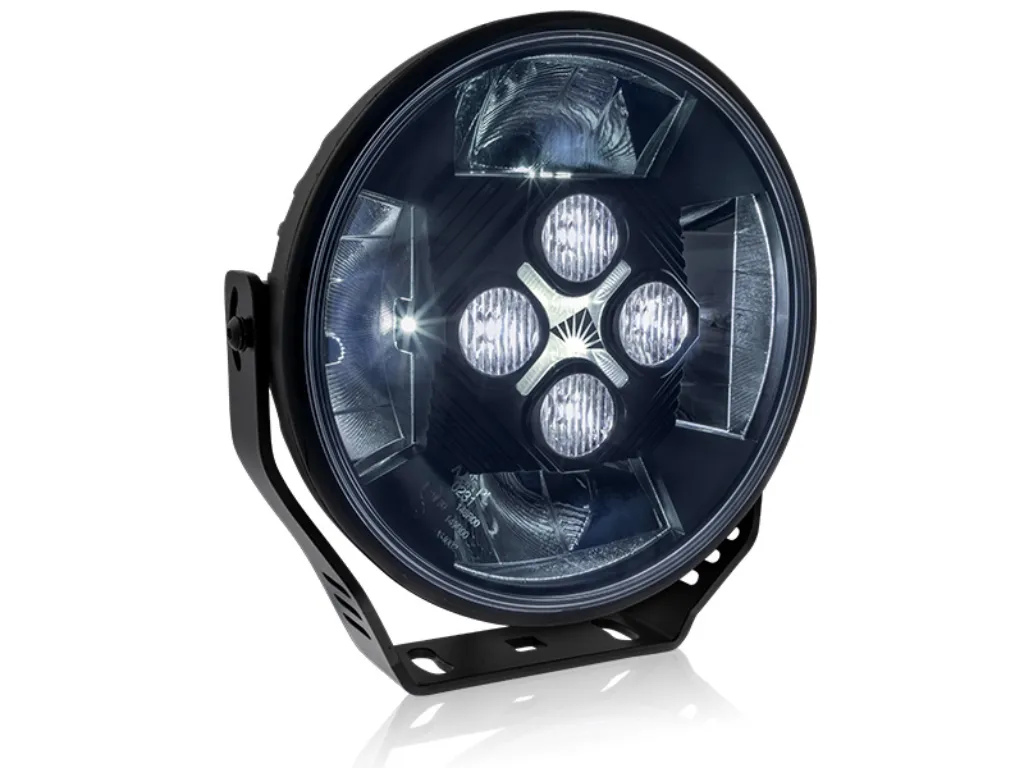

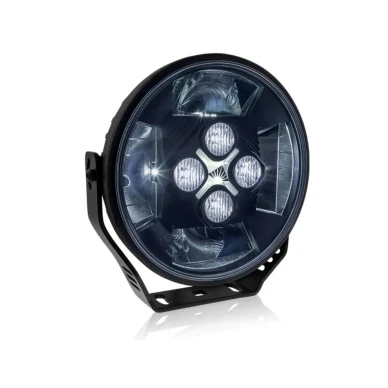

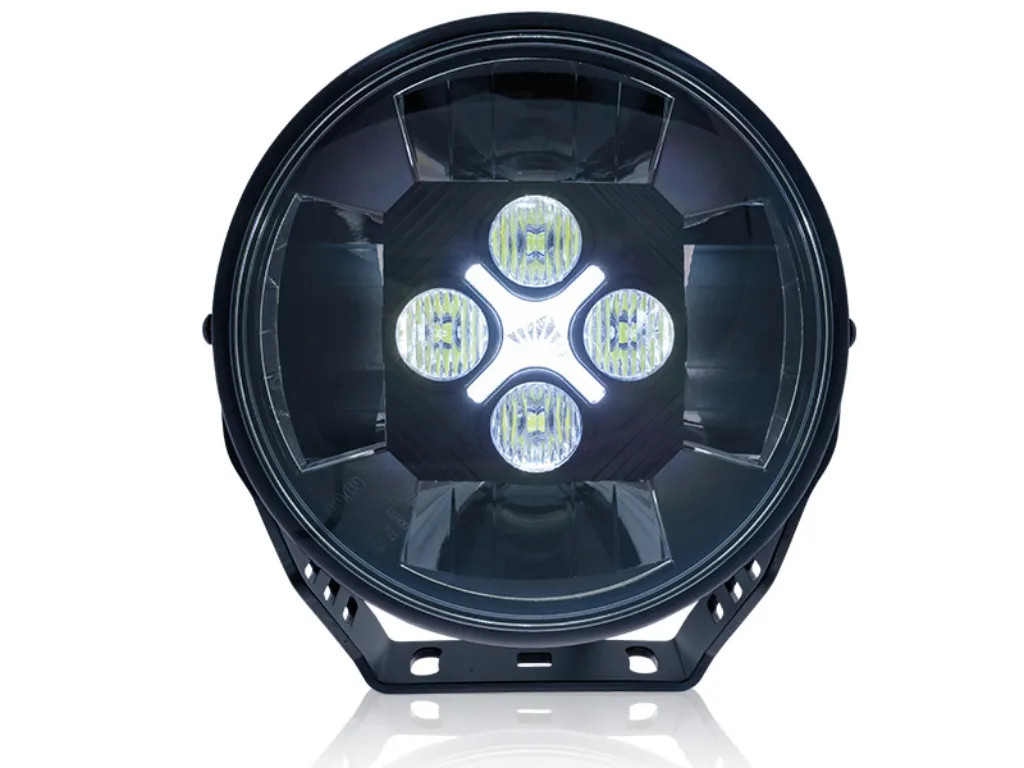

The frameless design of the Se7en reduces the build-up of snow, ice, and dirt on the surface of the lamp. Dark optics, a black housing, and a distinctive X-shaped parking light give the lamp a recognizable appearance. The parking light color can be set to either white or orange.

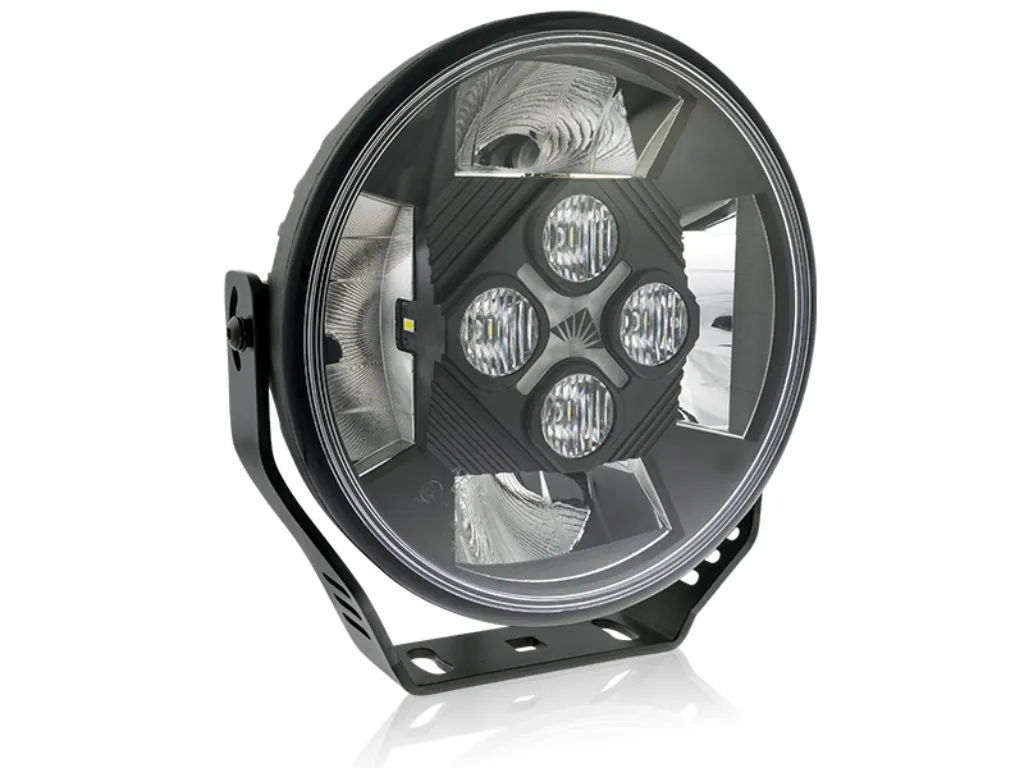

Installation is made easier with two included mounting options: a bottom bracket and a U-bracket. This allows the lamp to be mounted in the most suitable way for the vehicle and installation location.
Main features:
✅ 7” / Ø 178 mm round LED auxiliary light
✅ Measured luminous flux: 9159 lm
✅ Theoretical luminous flux: 10,400 lm
✅ Extremely wide beam pattern
✅ Double Up range up to 500 m
✅ Double Up function for off-road use
✅ 8 LEDs
✅ Color temperature: 5500 K
✅ Reference number: 30
✅ White / orange X-shaped parking light
✅ Dark optics and frameless design
✅ Bottom bracket and U-bracket included
✅ Operating voltage 9–36 V
✅ 4-pin DT connector
✅ IP68 protection rating
✅ R148, R149, and R10 approvals
✅ 36-month warranty
