OPTIBEAM PURE 506 17620LM REF:30 508 X 42 X 65mm
| Product Number | 1605-NS2097 |
| Model Name | Pure 506 |
| Shape | Curved LED Light Bar |

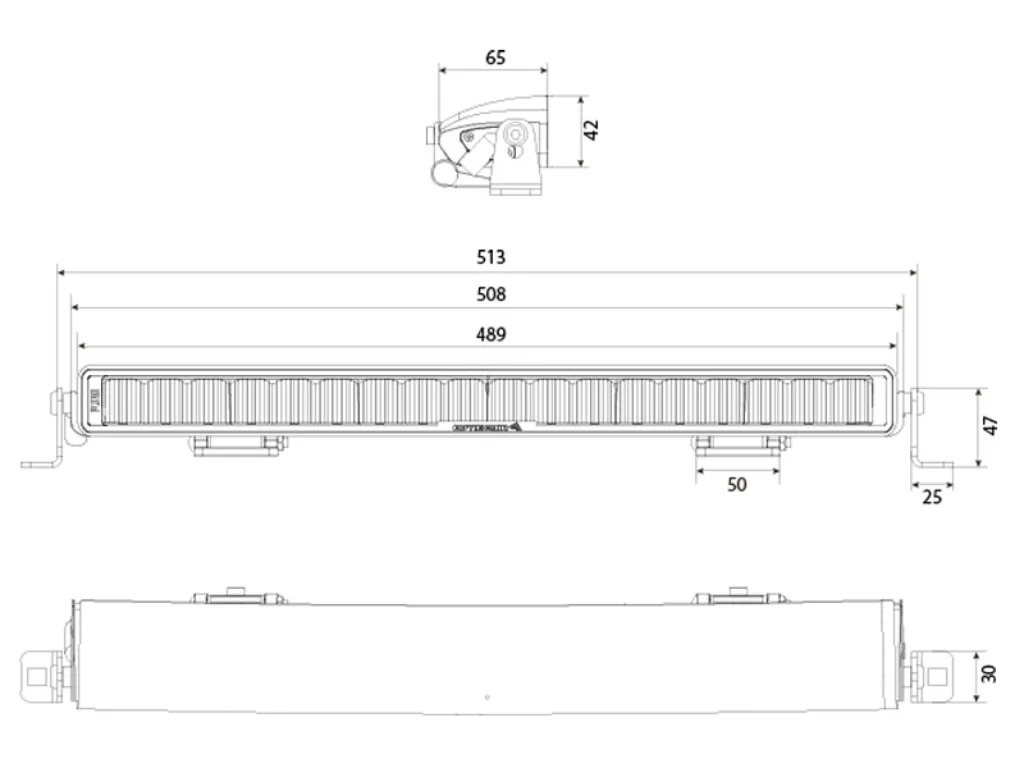

| Dimensions | 508 × 42 × 65 mm |
| Weight | 2.00 kg |
| Voltage | 9–48 V |
| Theoretical Luminous Flux | 19,400 lm |
| Measured Luminous Flux | 17,620 lm |
| Beam Pattern | Wide |
| Color Temperature | 5000 K |
| Reference Number | 30 |
| Range, 1 lux | 260 m |
| Double Up Range, 1 lux | 562 m |
| Parking Light | White / Amber |
| Power Consumption | 21 A @ 13.7 V |

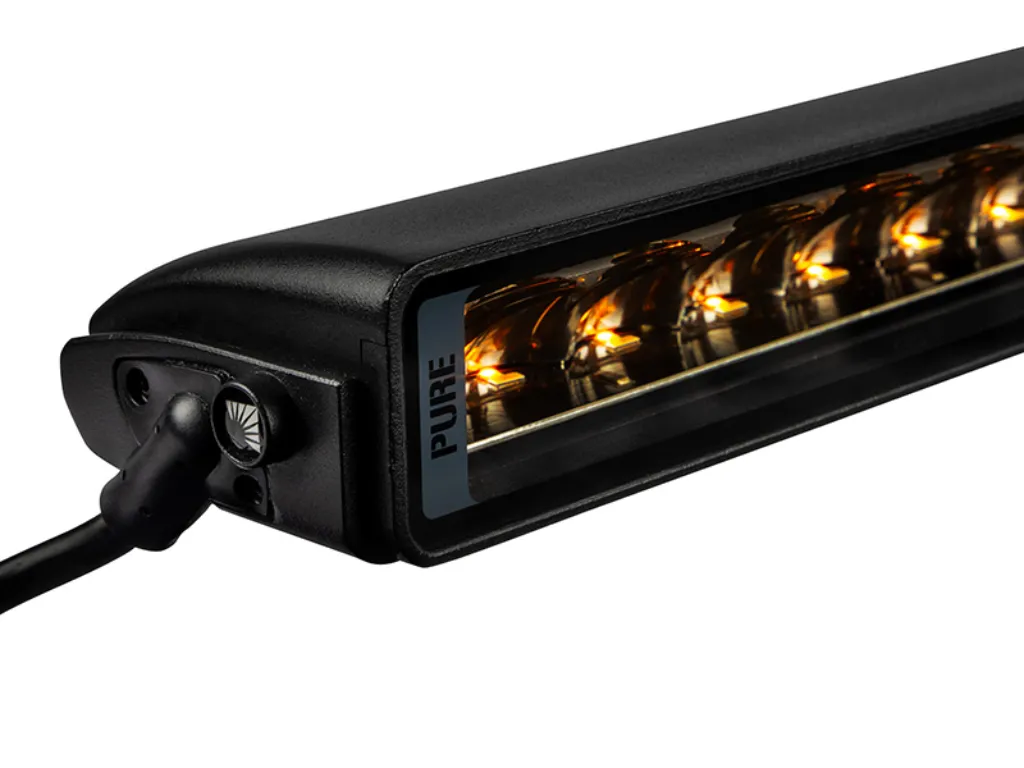

| Connector | 2-pin DTP |
| Cable Length | 2.20 m |
| Lens Material | Polycarbonate |
| Housing Color | Black |
| IP Rating | IP68 |
| Certifications | ECE R148, R149, R10 |
| Warranty | 36 months |
Description

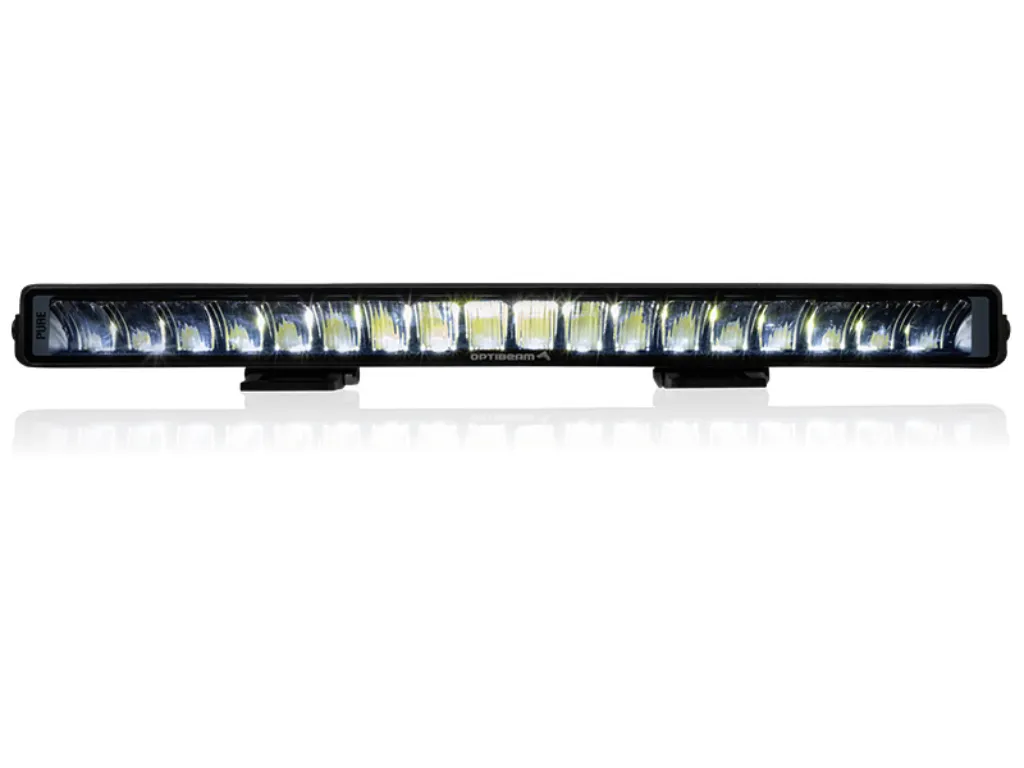

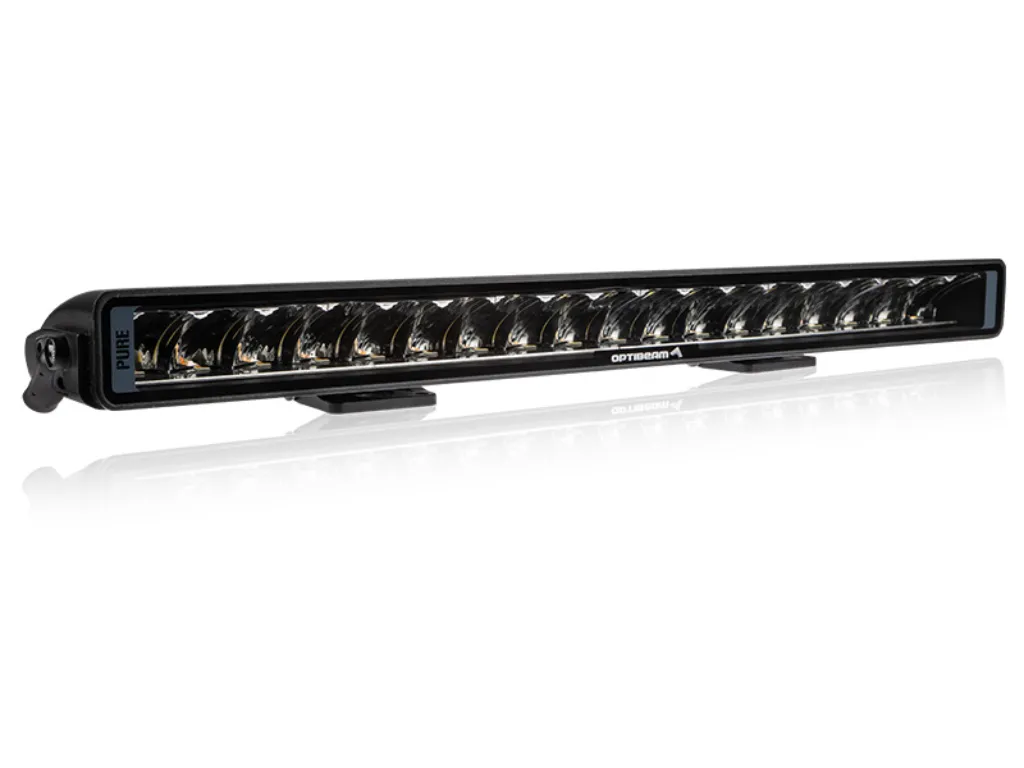

Optibeam Pure 506 – ultra-powerful and low-profile LED auxiliary light
The Optibeam Pure 506 is a highly efficient and extremely low-profile LED light bar that combines high luminous output, an exceptionally wide beam pattern, and a curved body only 42 mm tall. Thanks to its compact structure, this lamp can be mounted neatly even in spaces where available installation room is limited.

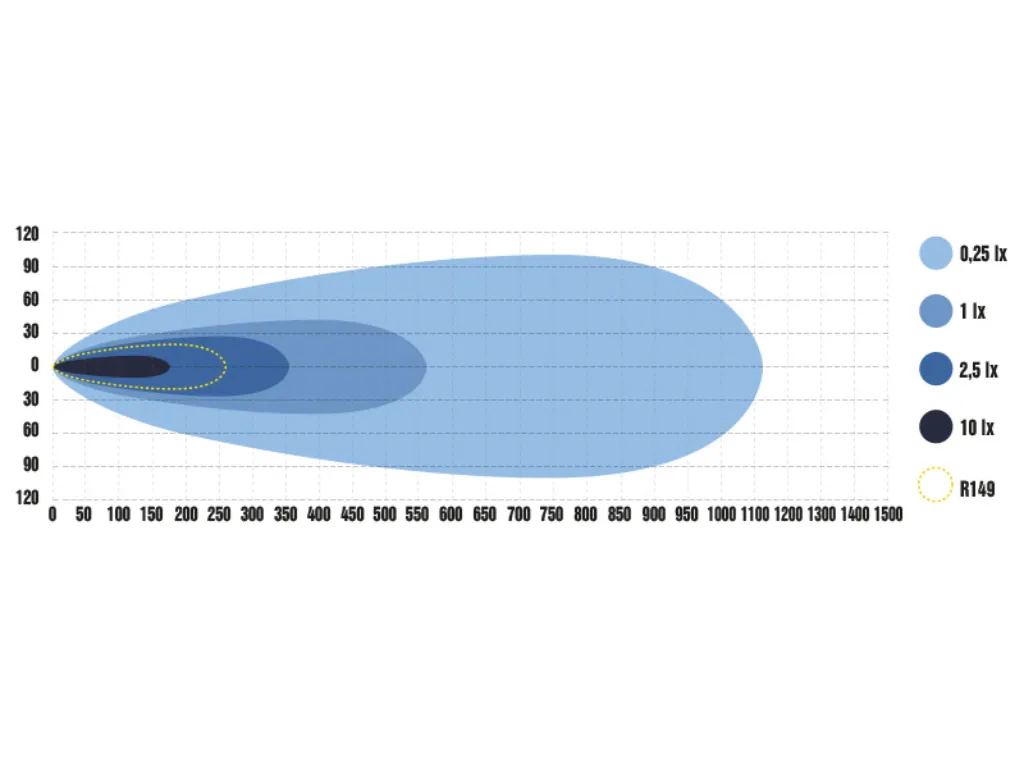

The Pure 506 delivers a measured luminous output of 17,620 lumens. Its ultra-wide beam pattern provides abundant illumination in front of the vehicle and along the roadside. In road traffic use, the 1 lux distance reaches 260 meters and the reference number is 30.
With the Double Up function, the light achieves its full performance in off-road use, increasing the 1 lux range up to 562 meters.
The 5000 K color temperature produces natural-looking light. The Pure series optics and LED technology provide a high color rendering index (CRI), helping to reproduce natural colors and details in the environment.

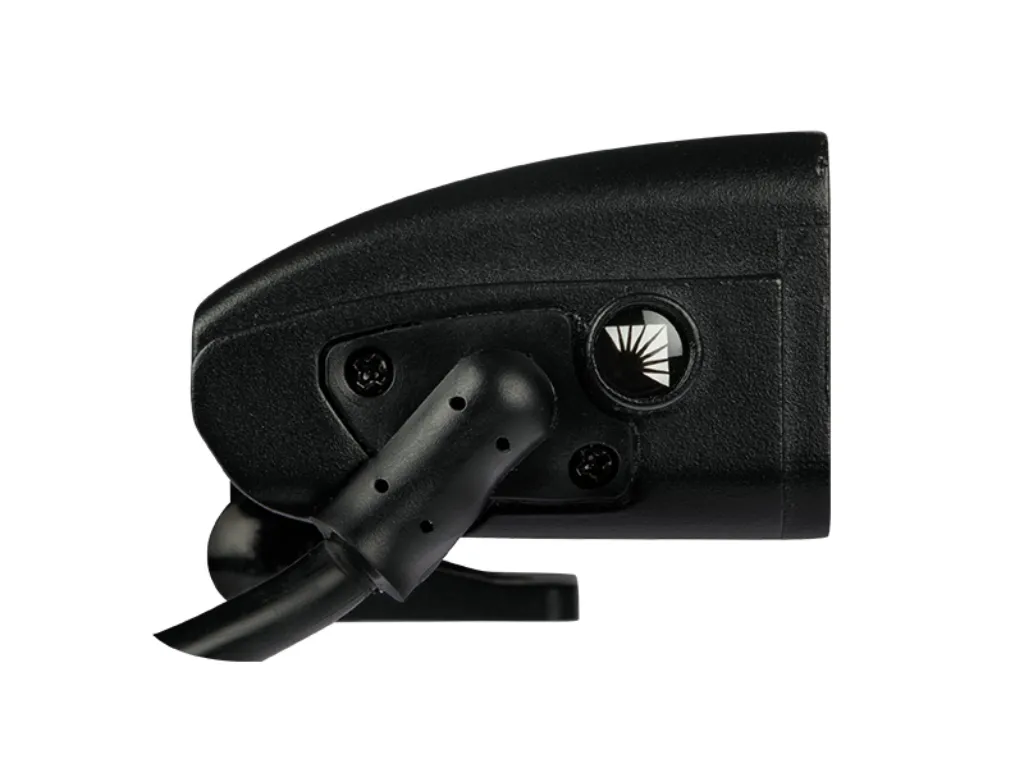

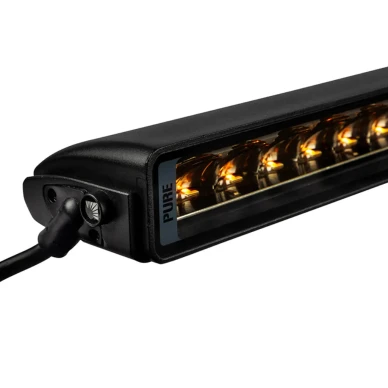

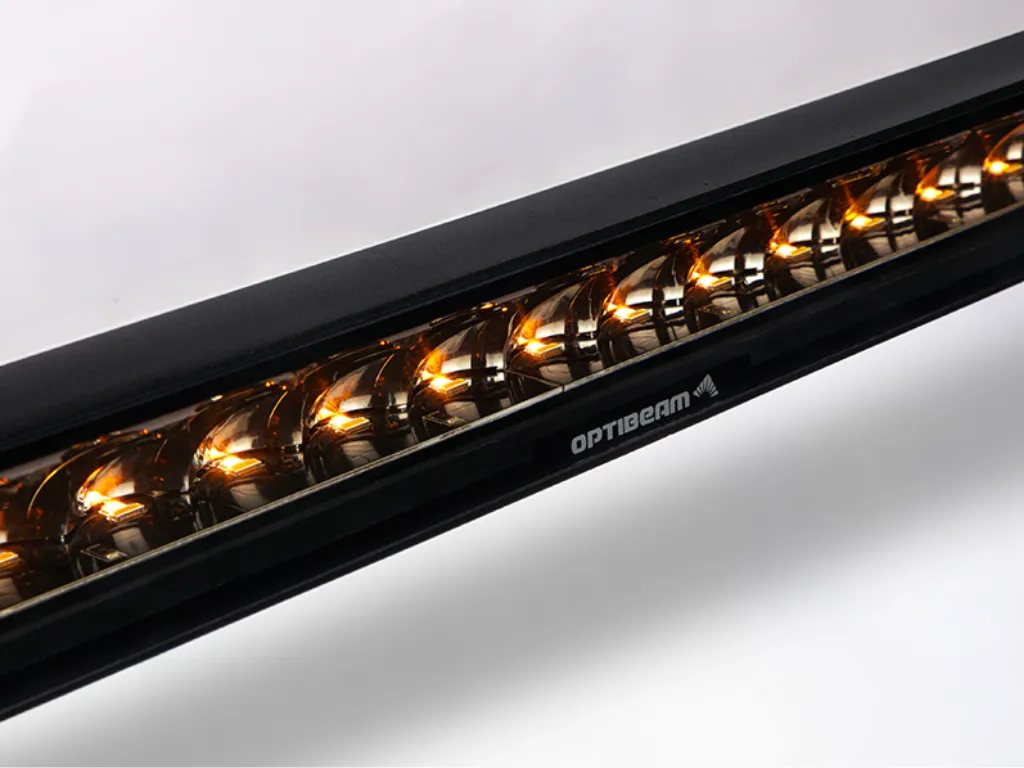

The 42 mm tall curved one-piece body is designed for efficient thermal management and to protect the lamp's electronics and structure in demanding conditions. The lens is made from extremely durable polycarbonate composite.

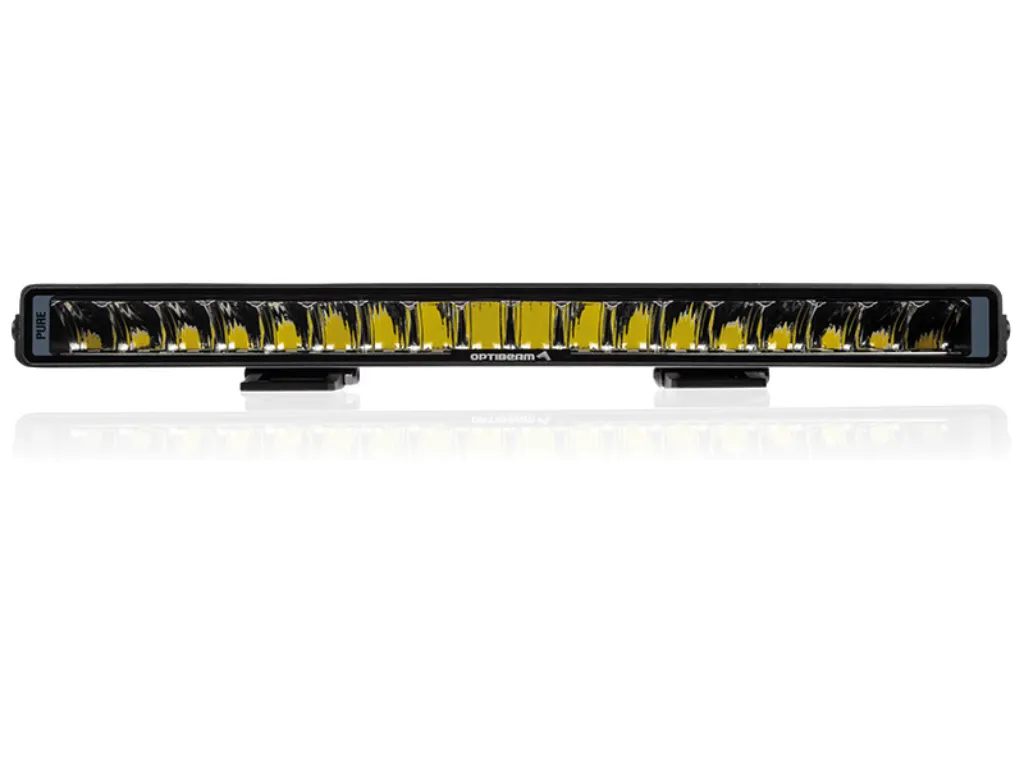

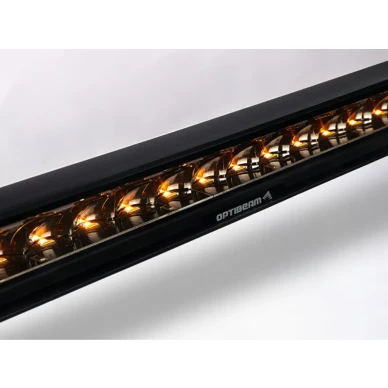

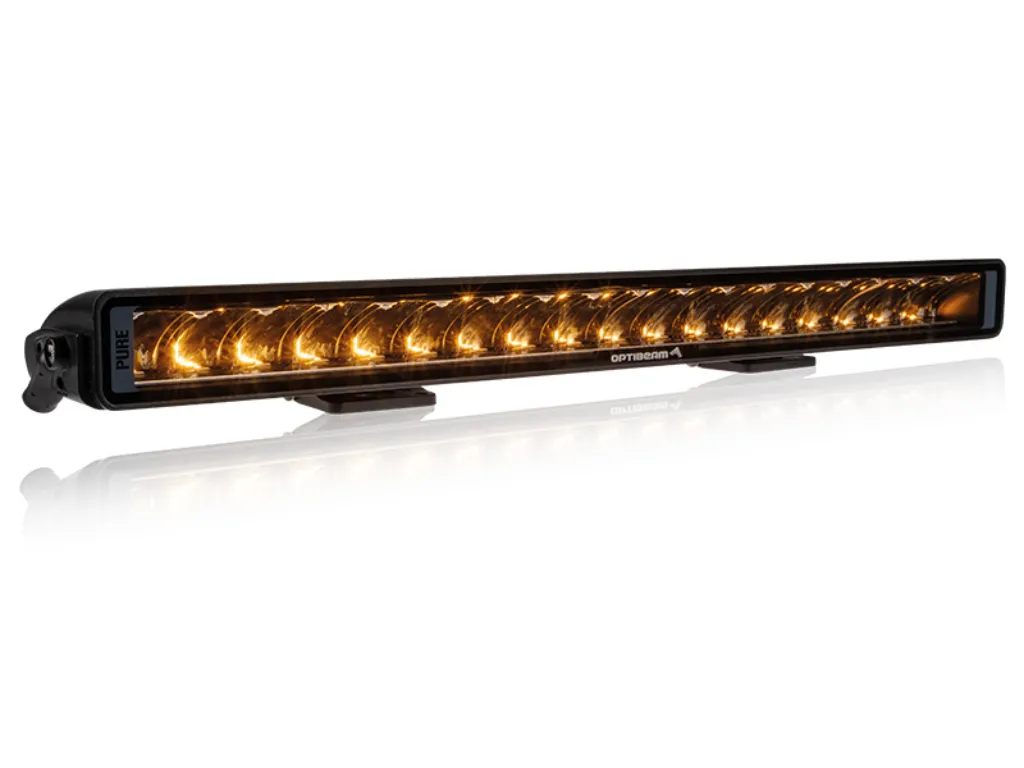

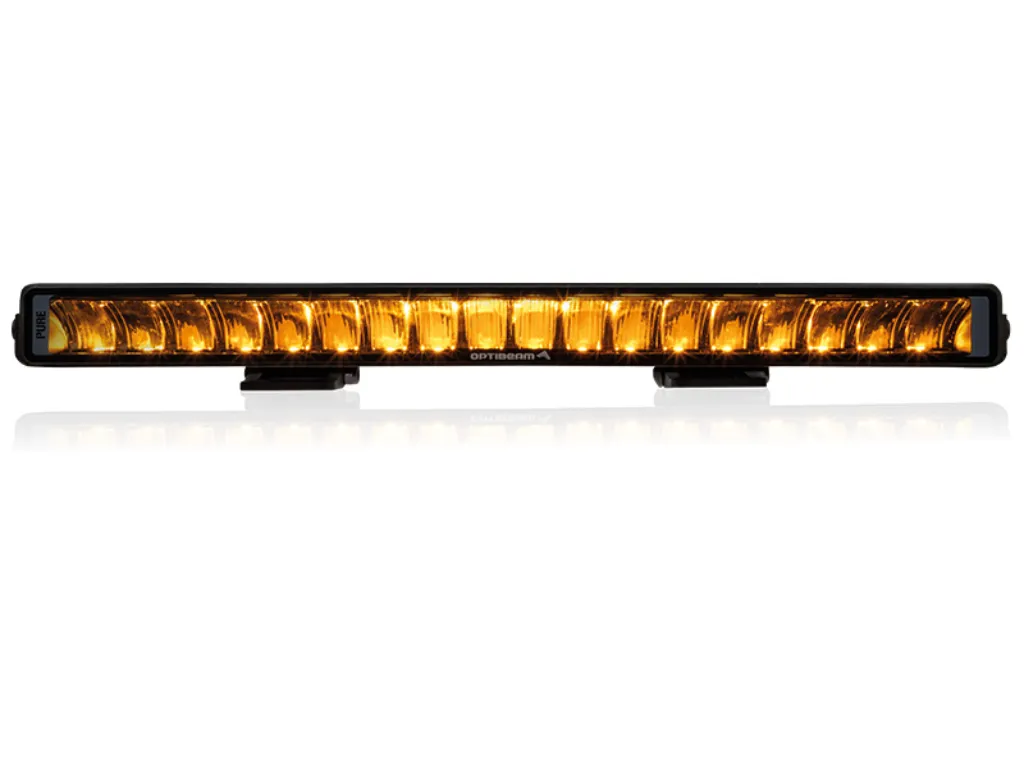

The Pure 506 also features a white/orange parking light, and its wide 9–48 V operating voltage range enables use in various vehicles from passenger cars to heavy-duty equipment.
The Pure 506 performed excellently in Trailer magazine’s 20” auxiliary light test (12/2023), where it was selected as the test winner.
Main features:
✅ Measured luminous output: 17,620 lm
✅ Theoretical luminous output: 19,400 lm
✅ Ultra-wide beam pattern
✅ Only 42 mm tall curved body
✅ Length: 508 mm
✅ Range at 1 lux: 260 m
✅ Double Up range up to 562 m
✅ Double Up function for off-road use
✅ Color temperature: 5000 K
✅ Reference number: 30
✅ White / orange parking light
✅ High CRI LED technology
✅ Extremely durable polycarbonate lens
✅ One-piece body construction
✅ 9–48 V operating voltage
✅ IP68 protection rating
✅ ECE R148, R149, and R10 approvals
✅ 36-month warranty
✅ Winner of Trailer magazine’s 20” auxiliary light test, 12/2023
