OPTIBEAM PURE 335 12190LM REF:25 335 X 42 X 65mm

| Product Number | 1605-NS2105 |
| Model Name | Pure 335 |
| Shape | Curved LED light bar |

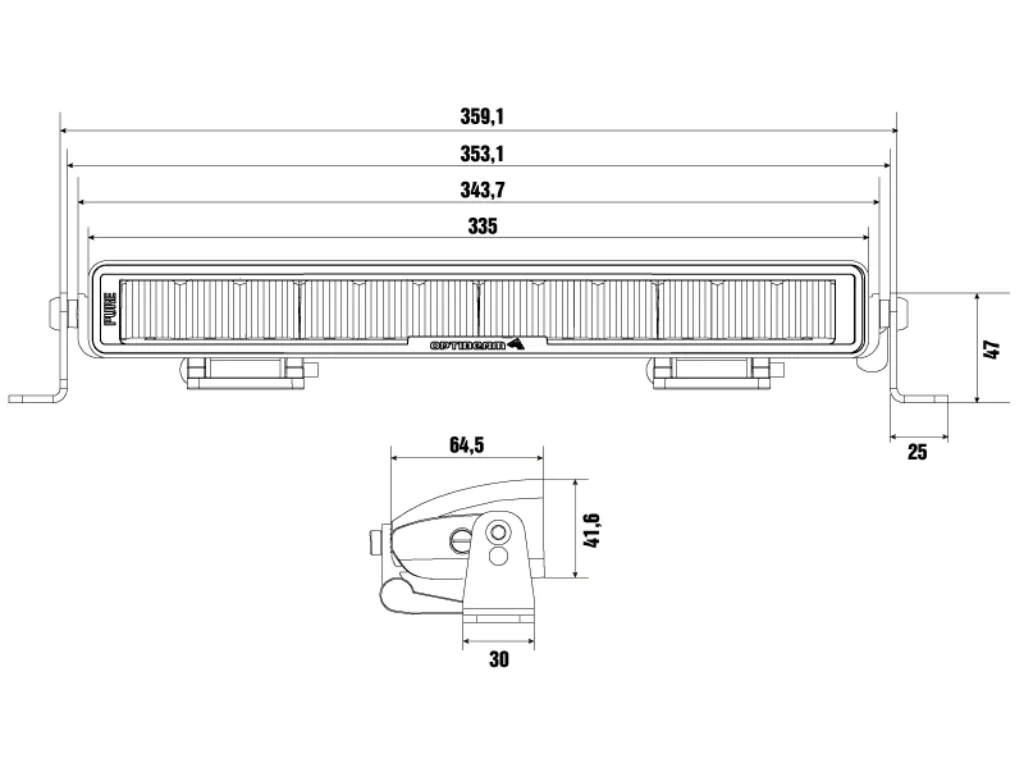

| Dimensions | 335 × 42 × 65 mm |
| Weight | 1.50 kg |
| Voltage | 9–48 V |
| Theoretical Luminous Flux | 13,400 lm |
| Measured Luminous Flux | 12,190 lm |
| Light Pattern | Wide |
| Color Temperature | 5000 K |
| Reference Number | 25 |
| Range, 1 lux | 213 m |
| Double Up Range, 1 lux | 450 m |
| Parking Light | White / amber |
| Current Draw | 14.95 A @ 13.7 V |
| Connector | 2-pin DTP |
| Cable Length | 2.20 m |
| Housing Color | Black |
| Approvals | R148, R149, R10 |
| Warranty | 36 months |
Description

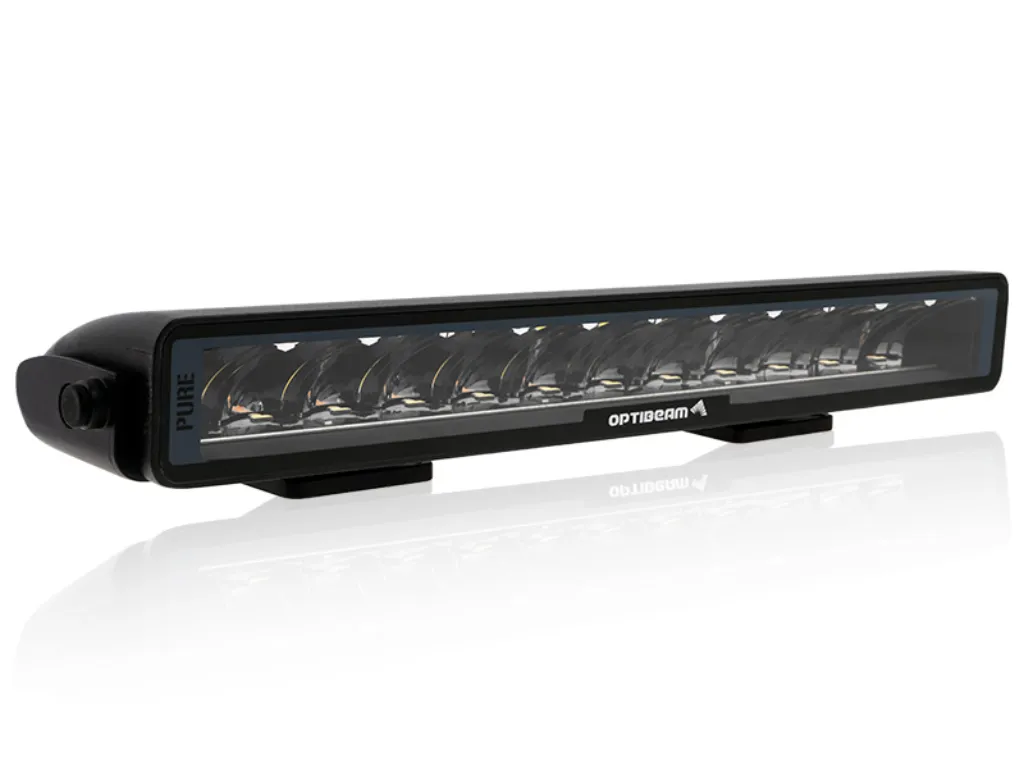

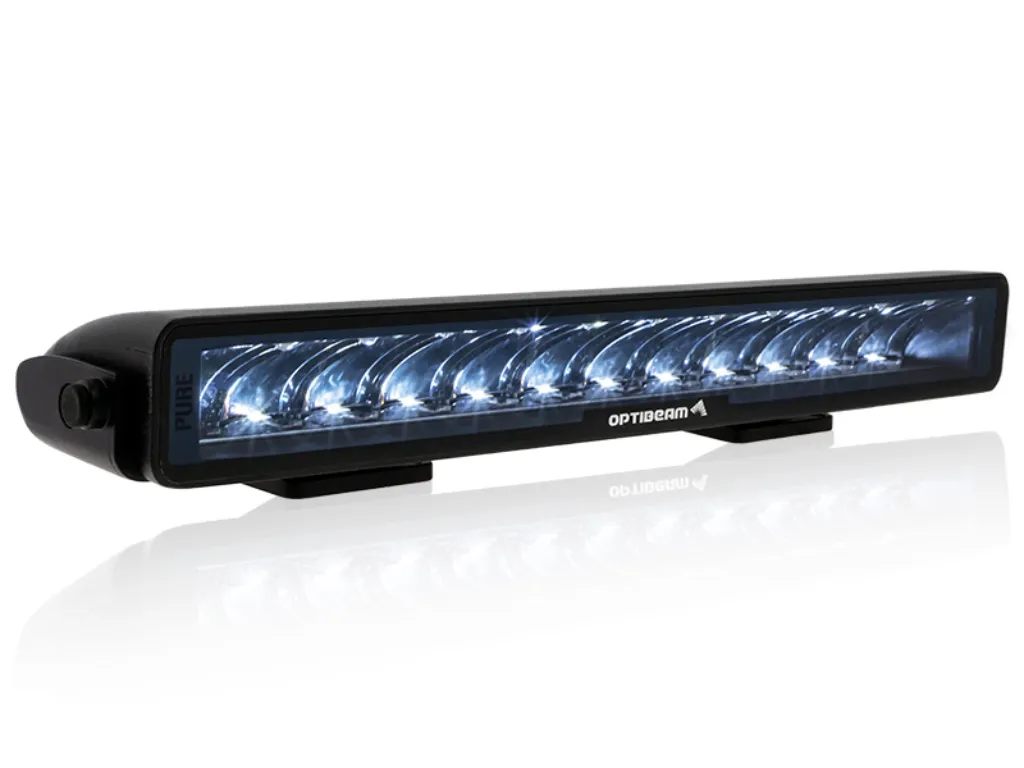

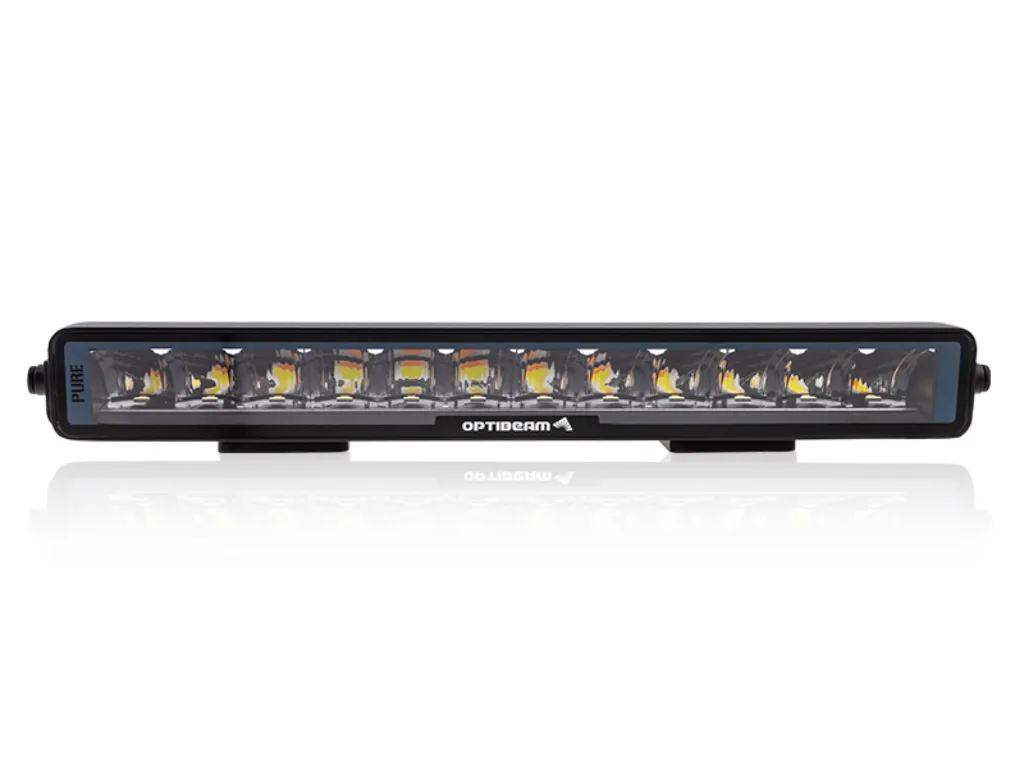

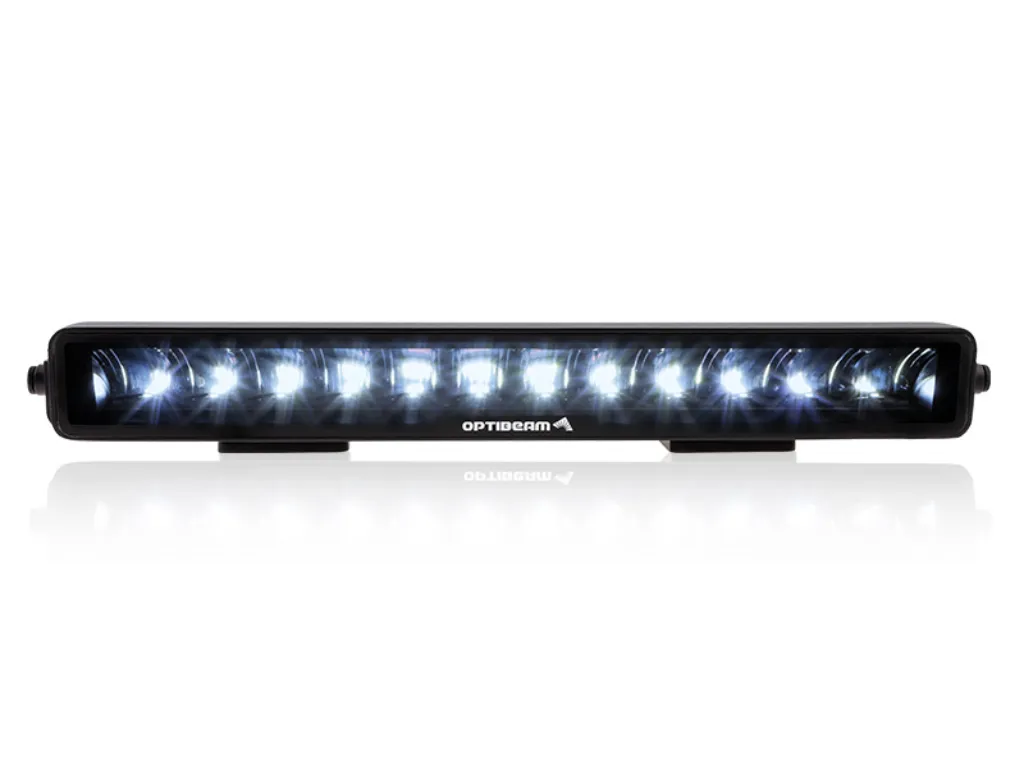

Optibeam Pure 335 – Compact and Extremely Powerful LED Auxiliary Light
The Optibeam Pure 335 is a new-generation compact LED auxiliary light bar that combines extremely high luminous output, a wide light pattern, and a curved housing just 42 mm high. Thanks to its small size, the light is easy to install discreetly, even in spaces with limited mounting room.

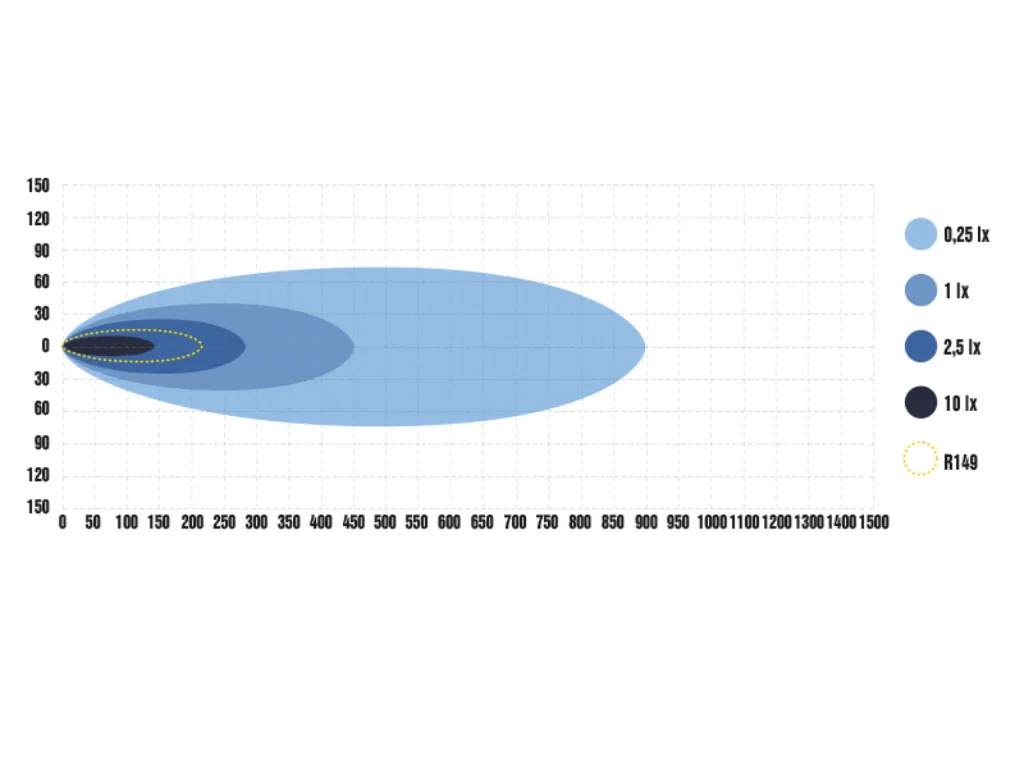

The Pure 335 delivers a measured light output of 12,190 lumens, even though the length of the bar is only 335 mm. The exceptionally wide beam pattern provides plentiful illumination in front of the vehicle and along the roadside. In road use, the 1 lux range is 213 meters and the reference number is 25.
With the Double Up function, the lamp’s full performance is available for offroad use, increasing the 1 lux range up to 450 meters.
The 5000 K color temperature produces a natural tone of light. Special attention has been paid to the high CRI value of the Pure series LED units, ensuring that colors and details in the environment are rendered as naturally as possible.

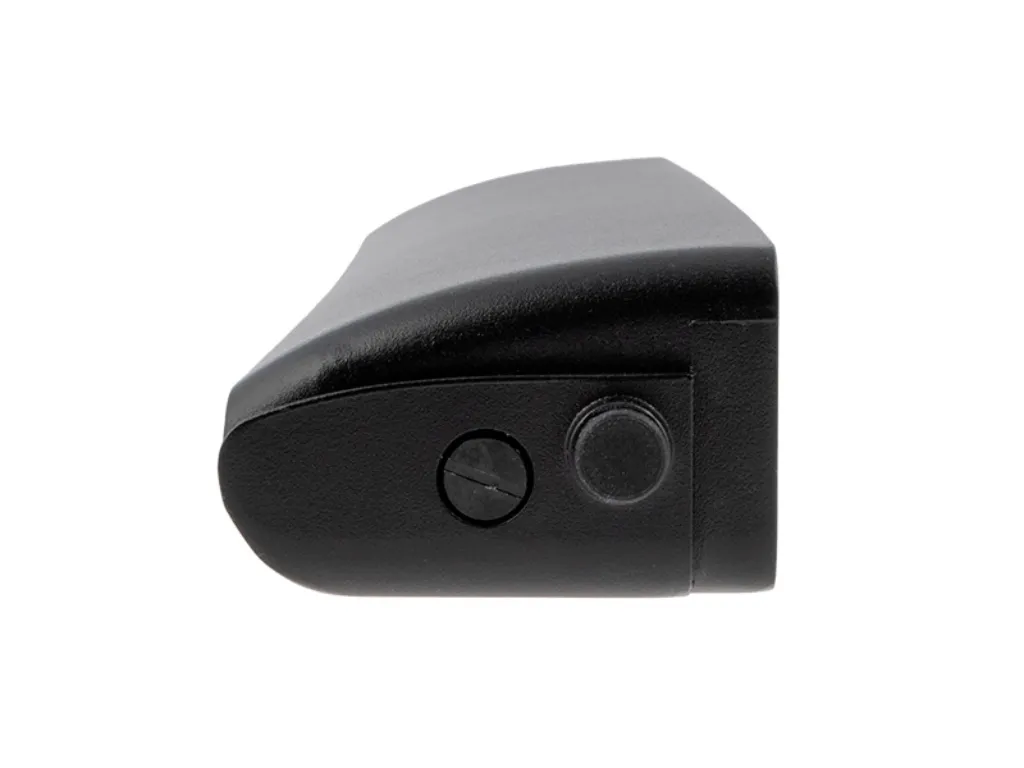

The curved housing, just 42 mm high, ensures a neat installation. The one-piece housing structure of the Pure series is designed to effectively dissipate heat away from the electronics and protect the light from mechanical impacts. The lens uses an exceptionally strong polycarbonate alloy.

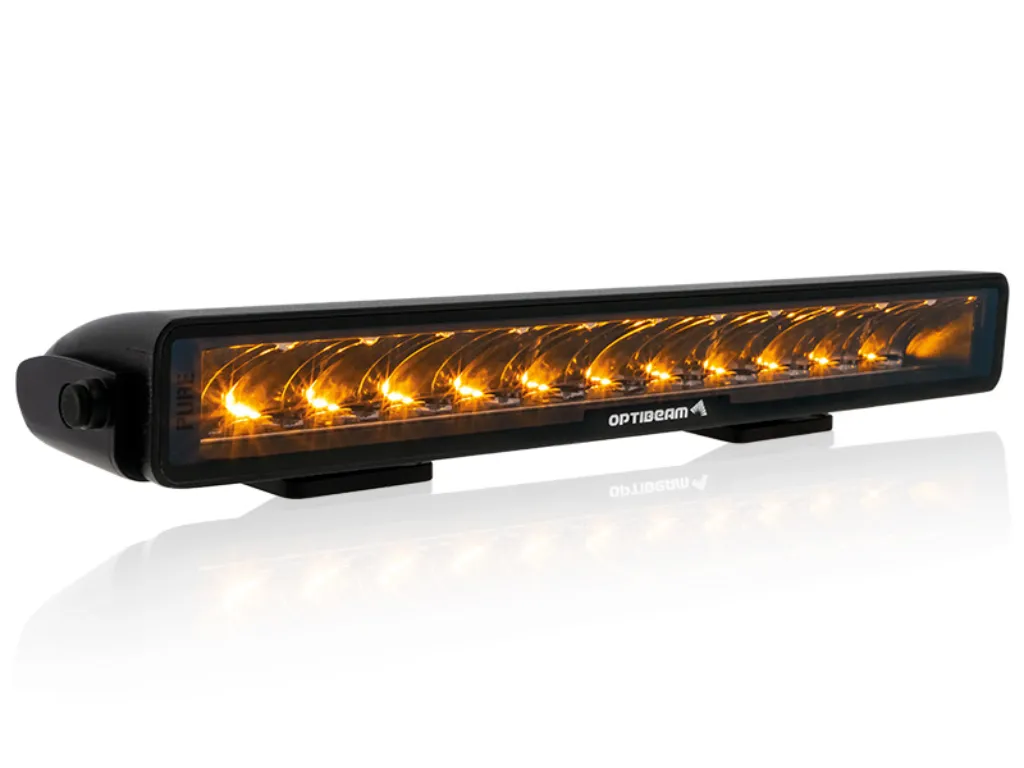

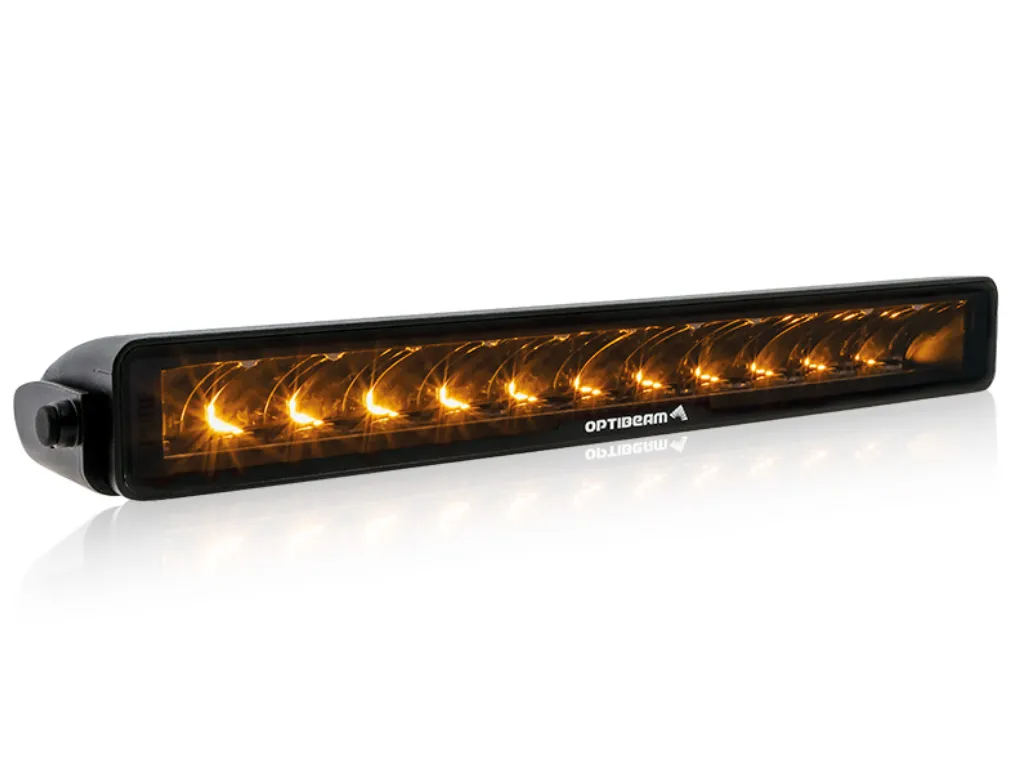

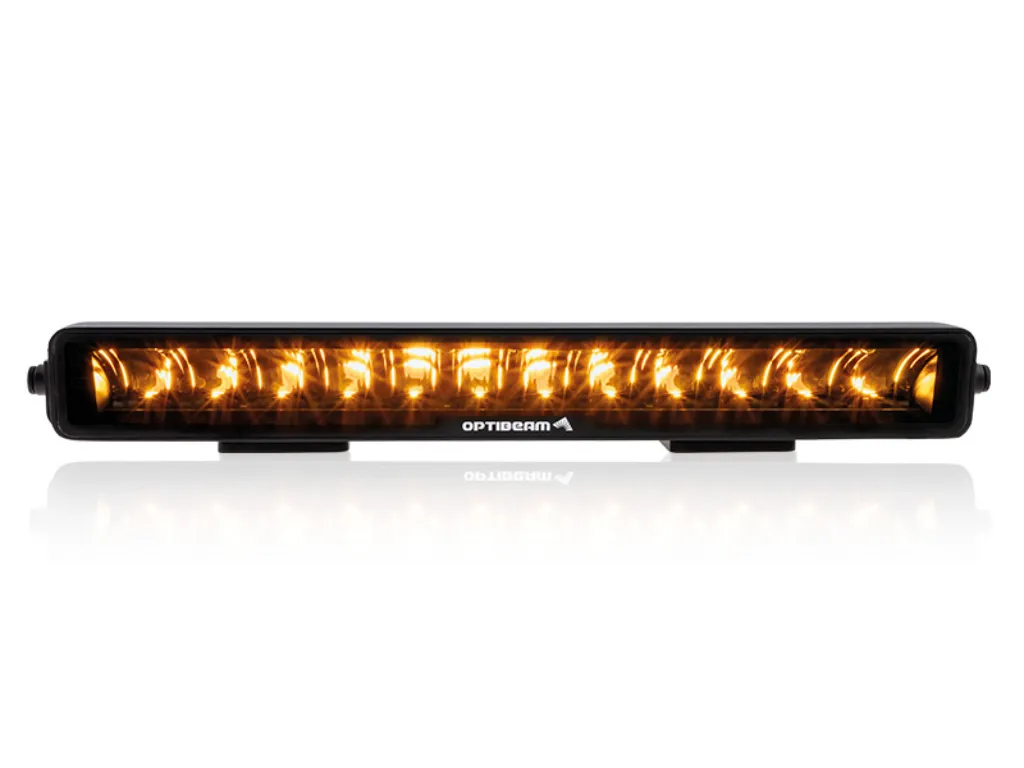

The Pure 335 is also equipped with a white/orange position light. The wide operating voltage range of 9–48 V makes this light suitable for a variety of vehicles, from passenger cars to heavy-duty equipment.
Main features:
✅ Extremely compact and powerful LED auxiliary light bar
✅ Measured light output: 12,190 lm
✅ Theoretical light output: 13,400 lm
✅ Exceptionally wide light pattern
✅ Only 335 mm wide and 42 mm high
✅ Curved housing
✅ 1 lux range: 213 m
✅ Double Up range up to 450 m
✅ Double Up function for offroad use
✅ Color temperature: 5000 K
✅ Reference number: 25
✅ White/orange position light
✅ High CRI LED technology
✅ Durable polycarbonate lens
✅ One-piece housing structure
✅ Wide operating voltage 9–48 V
✅ R148, R149, and R10 certifications
✅ 36-month warranty
