OPTIBEAM ELITES RALLY X 12V 6490LM 301 X 50 X 61mm

Optibeam
Optibeam Elites Rally X is an LED auxiliary light weighing only 400 g, designed specifically for competition and rally use. The luminous flux is 6,490 lm, with a beam range of 295 m, and up to 539 m with the Double Up function. Specifically designed for setups with multiple lights.
32376
Ref. number : 1605-NS2119
Backorder
Kysy saatavuus myynti@proxel.fi
-15%
sp. 394,40 €
ovh. 464,00 €
314,26 € ALV 0%
Get notified by email when the product is back in stock.
Lowest price during the 30 days before price reduction
348,00 €
Price now
394,40 €

Online store payment methods – Paytrail payment service logos

Postnord toimitustapa  Posti   Matkahuolto

Specifications
Product Number 1605-NS2119
Model Name Elites Rally X
Intended Use Competition and rally use
Shape Rectangular
Dimensions 301 × 50 × 61 mm
Weight 400 g
Voltage 12 V
Luminous Flux 6490 lm
Color Temperature 5000 K
Reference Number 20
Range, 1 lux 295 m
Double Up Range, 1 lux 539 m
Power Consumption 7 A @ 13.7 V
Connector 3-pin DT
Cable Length 1.00 m
Mounting End brackets
Housing Material Aluminum
Lens Material Polycarbonate
IP Rating IP68 / IP69K
Certifications ECE R10, R149
Warranty 36 months

Description

Optibeam Elites Rally X – Lightweight LED Auxiliary Light for Competition Use

Optibeam Elites Rally X is a LED auxiliary light specifically developed for competition and rally use, featuring high light output, an extremely lightweight structure, and a highly adjustable light pattern.

The lamp weighs only 400 grams, allowing you to build a multi-lamp setup without unnecessary added weight. Rally X is especially designed as a system of four lamps, with each individual light’s beam pattern adjustable upward or downward. This allows the light distribution to be tailored to the application and driving conditions.

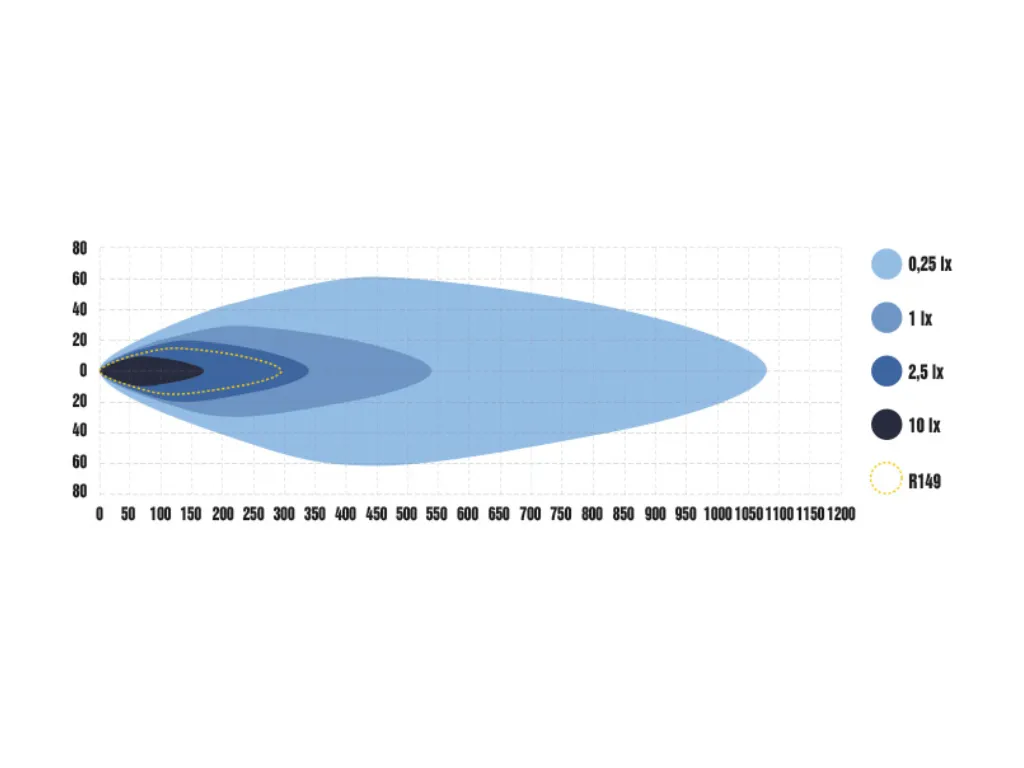

The stated luminous output is 6,490 lumens. The beam range at 1 lux intensity is 295 meters, and with the Double Up function, up to 539 meters. The 5,000 K color temperature provides natural-looking light and excellent visibility for demanding driving.

The compact 301 × 50 mm housing makes it easy to mount multiple lamps side by side. The aluminum body, polycarbonate lens, and IP68/IP69K protection are designed to withstand demanding operating conditions.

The Rally X is supplied with end brackets and connects electrically using a 3-pin DT connector.

Key features:

✅ LED auxiliary light designed for competition and rally use
✅ Extremely lightweight – only 400 g
✅ Especially designed for four-lamp installations
✅ Adjustable beam pattern (upward/downward)
✅ Light output 6,490 lm
✅ Range at 1 lux: 295 m
✅ Double Up range up to 539 m
✅ Double Up function
✅ Color temperature 5,000 K
✅ Reference number 20
✅ Compact dimensions: 301 × 50 × 61 mm
✅ Aluminum body and polycarbonate lens
✅ 3-pin DT connector
✅ IP68/IP69K protection
✅ ECE R10 and R149 approvals
✅ 36-month warranty
