OPTIBEAM ELITES MEGA 7780LM REF:20 248 X 139 X 80,5mm
| Product Number | 1605-NS2109 |
| Model Name | Elites Mega |

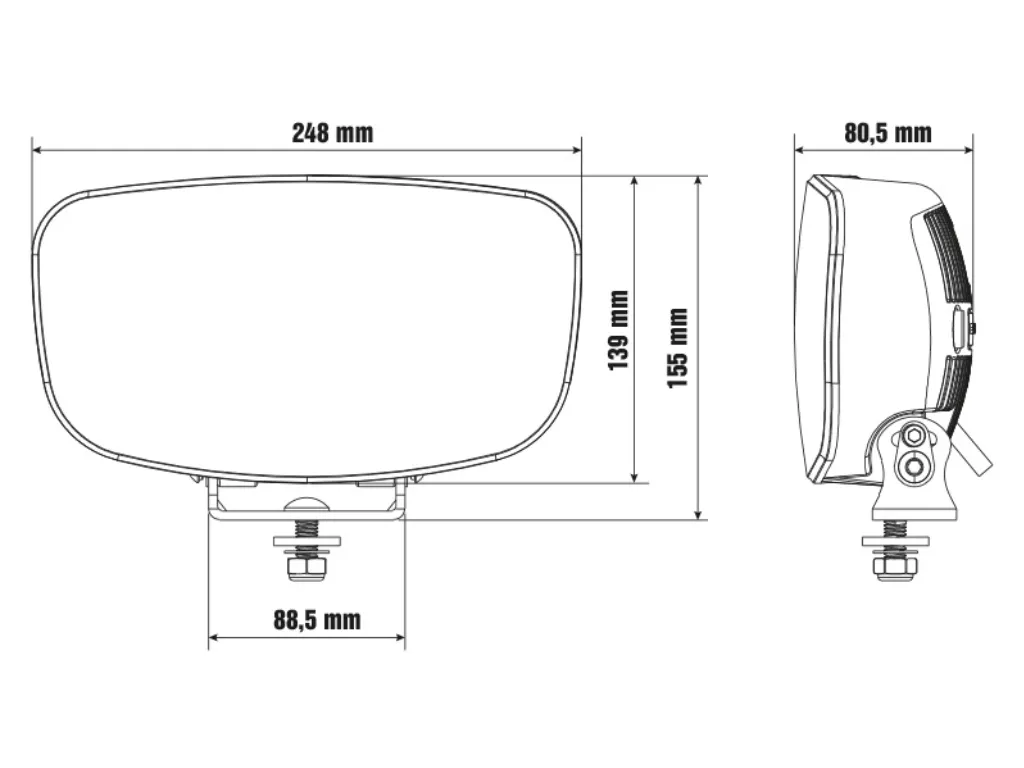

| Dimensions | 248 × 139 (155) × 80.5 mm |
| Weight | 2.00 kg |
| Voltage | 9–36 V |
| LED | 12 pcs |
| Measured Luminous Flux | 7780 lm |
| Beam Pattern | Wide |
| Color Temperature | 5000 K |
| Reference Number | 20 |
| Range, 1 lux | 329 m |
| Double Up Range, 1 lux | 559 m |
| Parking Light | White / Amber |
| Power Consumption | 8.69 A @ 13.7 V |
| Connector | 2-pin DTP |
| Cable Length | 2.20 m |
| Housing Color | Black |
| Approvals | R148, R149, R10 |
| Warranty | 36 months |
Description

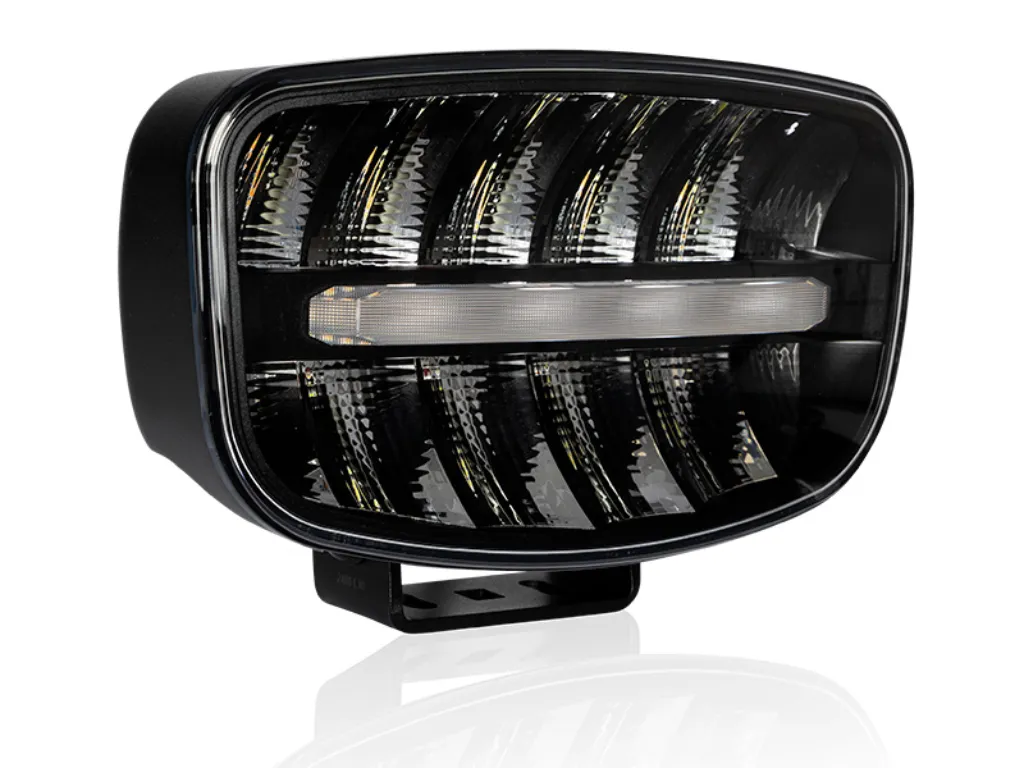

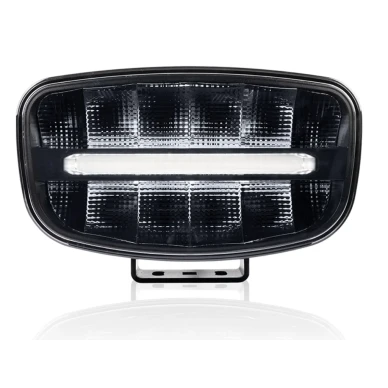

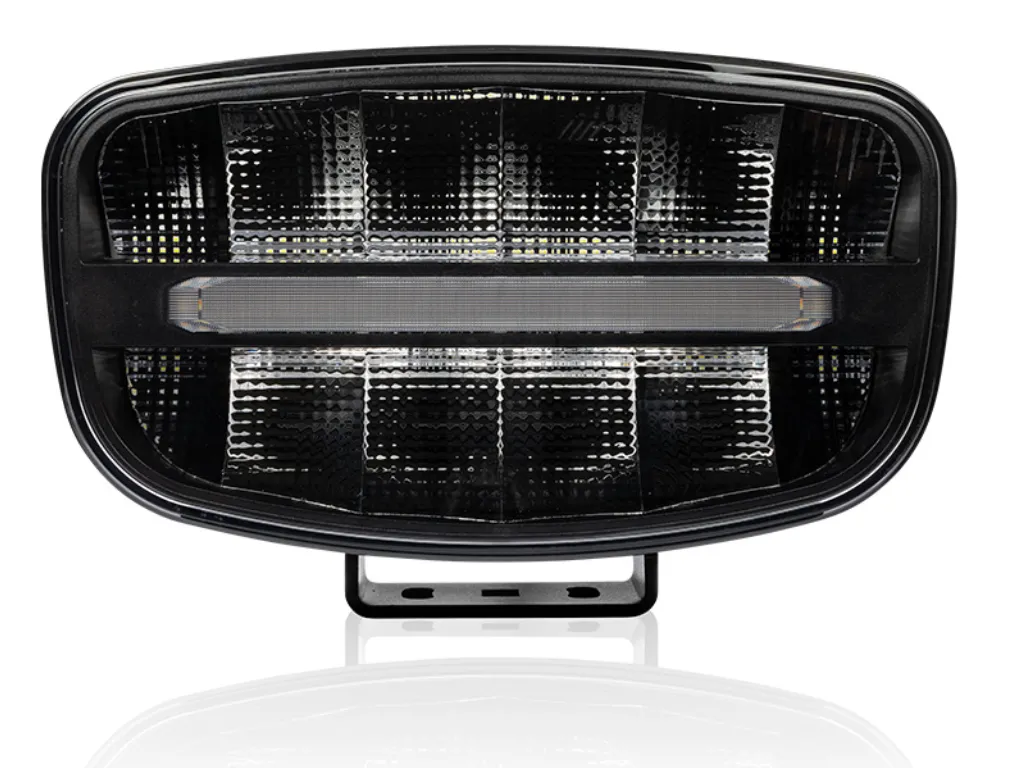

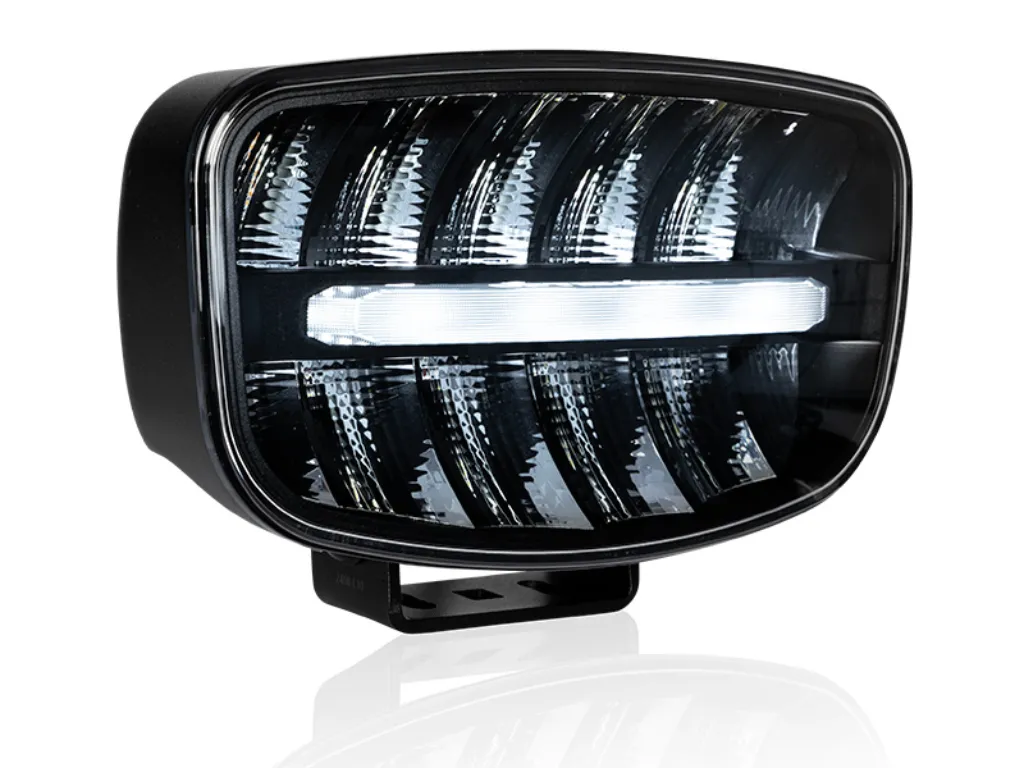

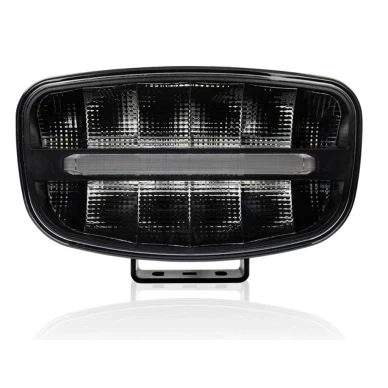

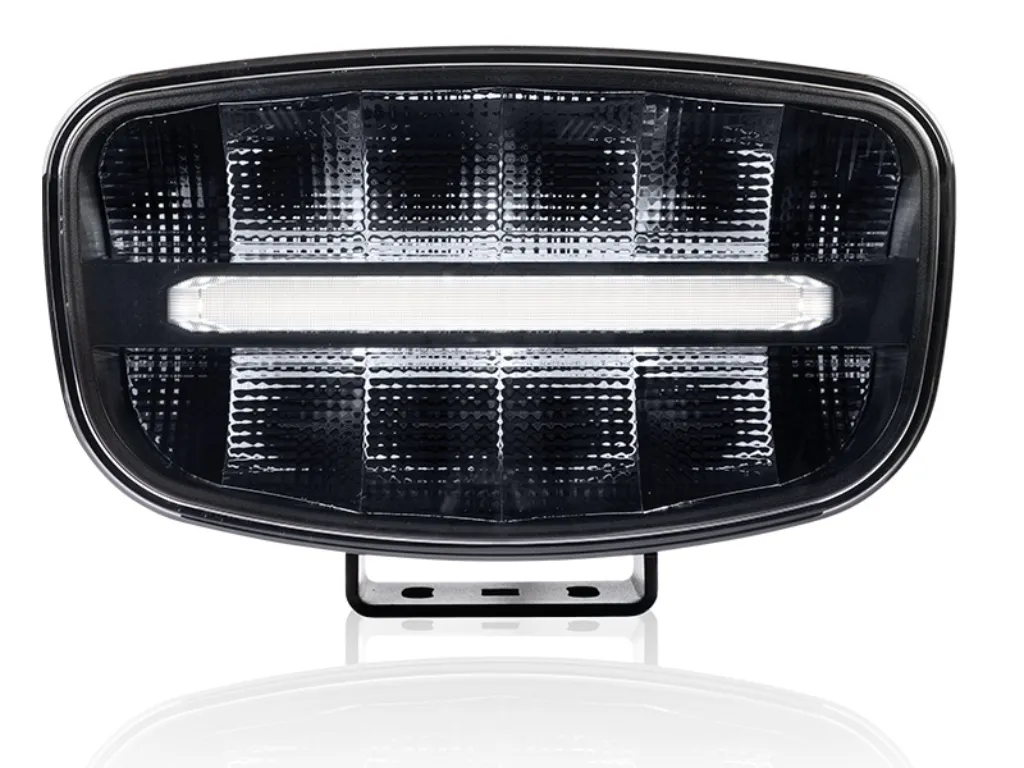

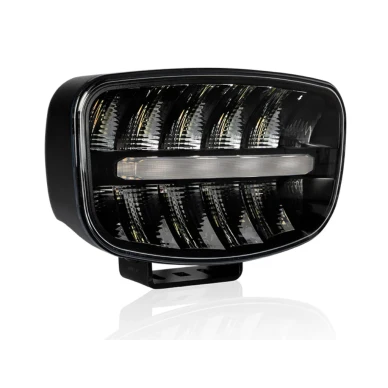

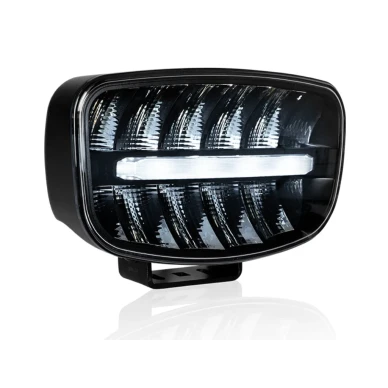

Optibeam Elites Mega – powerful and impressive LED auxiliary light
The Optibeam Elites Mega combines the classic design of an auxiliary light with modern LED technology and the performance of the Elites series. This striking, wide lamp is suitable for passenger cars, SUVs, and heavy-duty vehicles when you want both powerful lighting and a finished appearance from your auxiliary light.

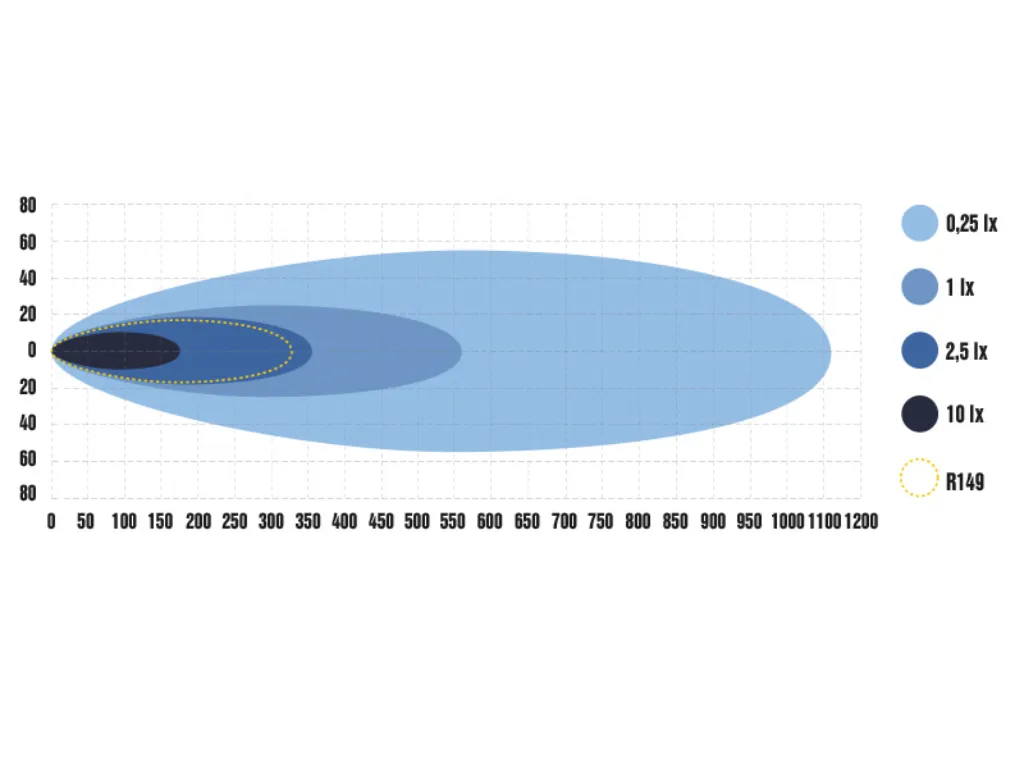

12 LEDs provide a measured light output of 7,780 lumens. The wide beam pattern delivers ample light both forward and to the roadside areas. For road use, the 1 lux range is 329 meters and the reference number is 20.
With the Double Up feature, you get maximum performance for off-road use, increasing the 1 lux range to up to 559 meters.

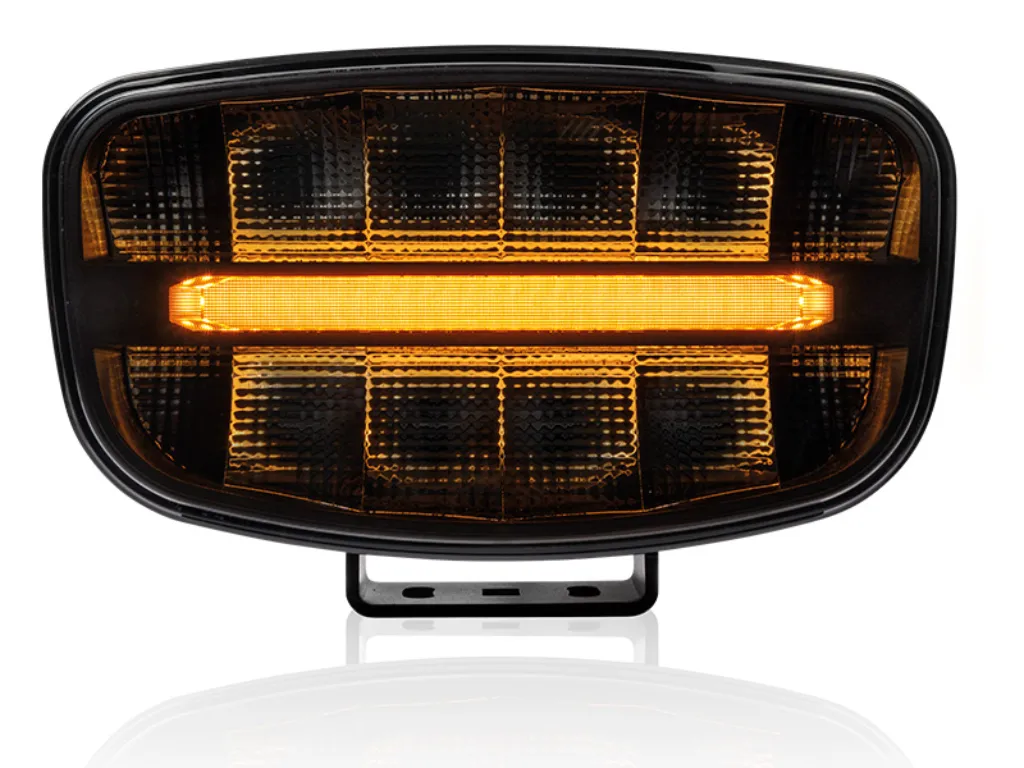

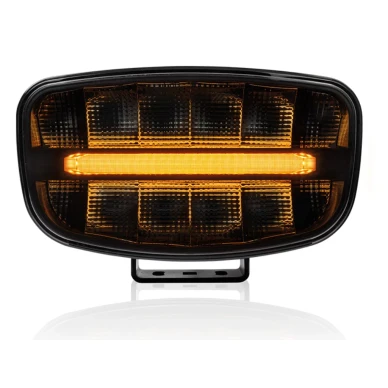

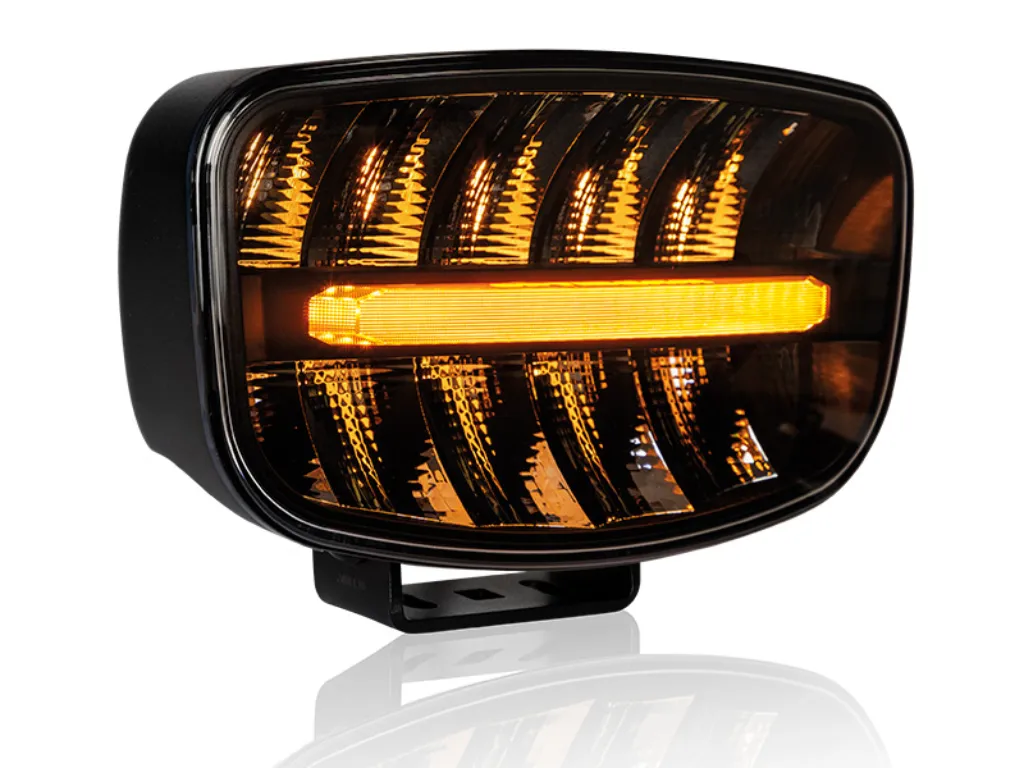

The 5000 K color temperature produces a natural, comfortable light for nighttime driving. The Elites Mega also features a dual-color white/orange position light, allowing you to match the appearance of the lamp to your vehicle.
The operating voltage of 9–36 V makes it suitable for a wide range of vehicles. Electrical connection is via a 2-pin DTP connector, and the lamp is equipped with a long 2.20-meter connection cable.
Main features:
✅ Striking Elites series LED auxiliary light
✅ Measured light output 7,780 lm
✅ Wide beam pattern
✅ 1 lux range: 329 m
✅ Double Up range up to 559 m
✅ Double Up function for off-road use
✅ 12 LEDs
✅ Color temperature 5,000 K
✅ Reference number 20
✅ White / orange position light
✅ Operating voltage 9–36 V
✅ 2-pin DTP connector
✅ 2.20 m connection cable
✅ R148, R149, and R10 approvals
✅ 36-month warranty
