OPTIBEAM ELITES 9 HEATED 9540LM REF:20 9-36V LÄMMITYS

| Product Number | 1605-NS2118 |
| Model Name | Elites 9 Heated |
| Shape | Round |
| Diameter | 9” / 218 mm |
| Dimensions | Ø 218 × 87.5 mm |
| Weight | 4.00 kg |
| Voltage | 9–36 V |
| LED | 16 pcs |
| Measured Luminous Flux | 9540 lm |
| Beam Pattern | Wide |
| Color Temperature | 5000 K |
| Reference Number | 20 |
| Range, 1 lux | 368 m |
| Double Up Range, 1 lux | 780 m |
| Heating | Automatic lens heating |
| Heating Control | Turns on at below +10 °C, turns off at +40 °C |
| Parking Light | White / Amber, dynamic |
| Power Consumption | 14.87 A @ 13.7 V |
| Heating Power Consumption | +3.5 A |
| Connector | 2-pin DTP |
| Cable Length | 2.20 m |
| Lens Material | Tempered glass |
| Housing Color | Black |
| IP Rating | IP68 / IP69K |
| Approvals | R148, R149, R10 |
| Warranty | 36 months |
Description

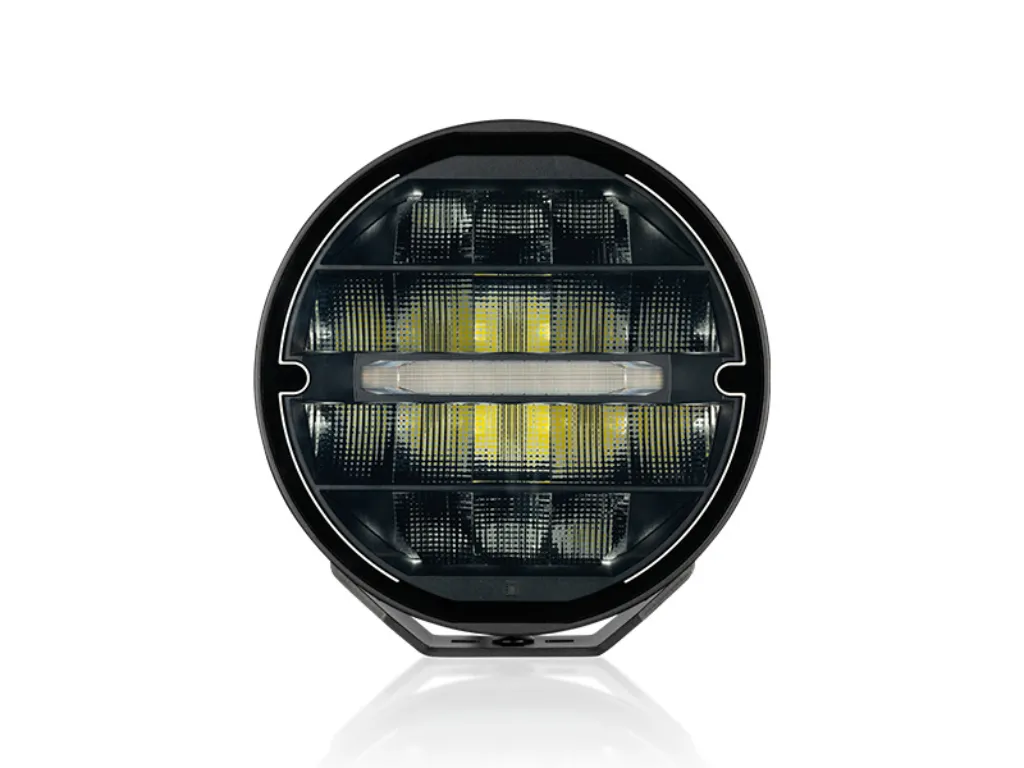

Optibeam Elites 9 Heated – Heated Premium LED Auxiliary Light
Optibeam Elites 9 Heated is a powerful 9” round LED auxiliary light specifically designed for the demanding winter conditions of northern climates. The automatically heated, tempered glass lens helps prevent the accumulation of snow and ice on the surface of the lamp, ensuring optimal light output even in challenging winter weather.
The heating function is activated automatically when the high beam or parking light is in use. The internal temperature sensor starts lens heating when the temperature drops below +10 °C, and the heating switches off when the lamp's temperature reaches +40 °C. The driver does not need to control the heating separately.

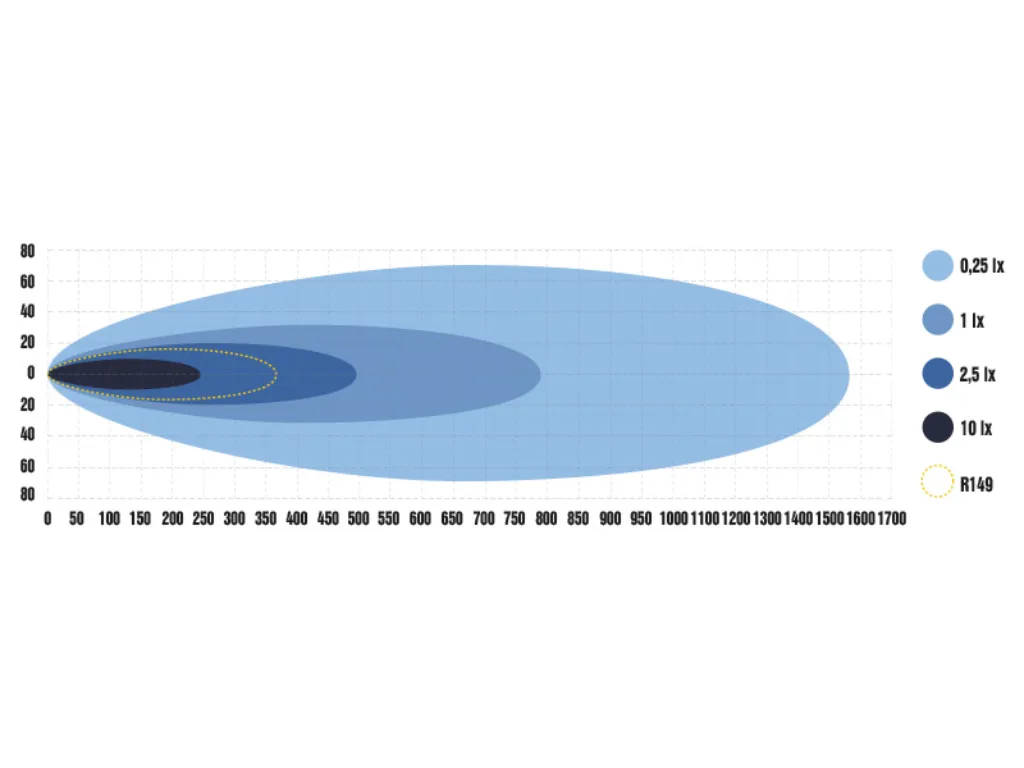

Sixteen LEDs deliver a measured luminous flux of 9540 lumens. A wide and full light pattern offers efficient illumination both far ahead and along the sides of the road. For road use, the 1 lux range is 368 meters, and with the Double Up function, the range extends up to 780 meters for off-road applications.
The 5000 K color temperature provides a natural and eye-friendly light. Reference value is 20.

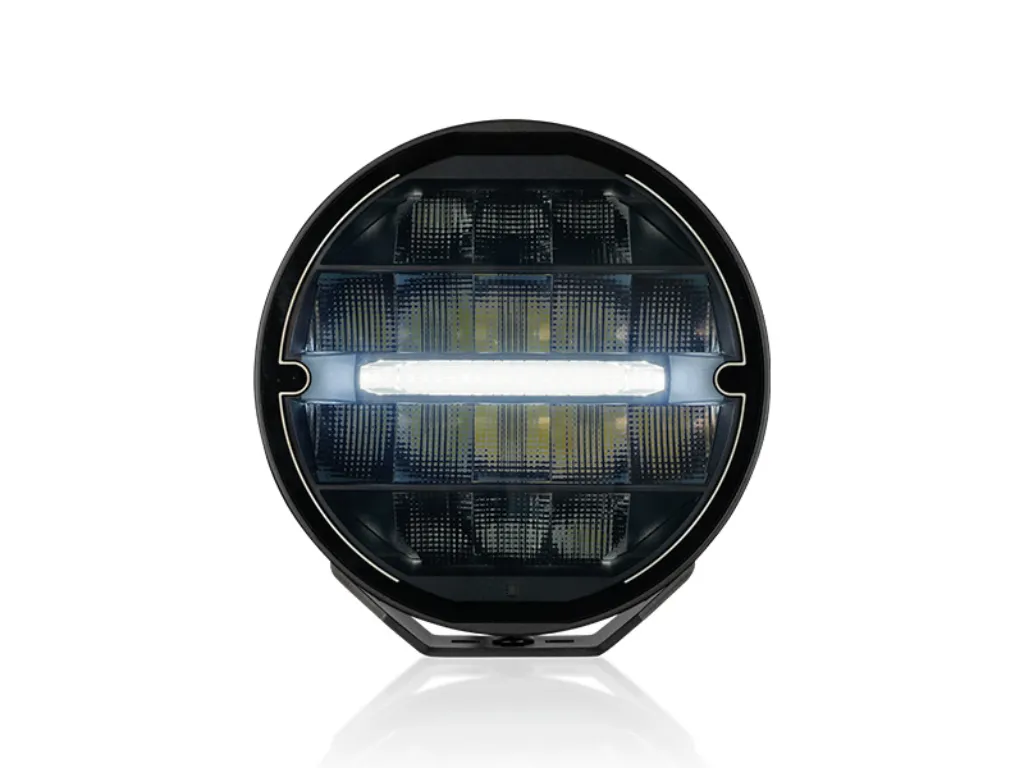

The Elites 9 Heated also features a dual-color white/orange parking light and an impressive dynamic start-up function. Buttons on the back of the lamp allow selection of the parking light color and operation mode.
Dark optics, a black housing, and a tempered glass lens complete the premium-level construction. IP68/IP69K protection, 9–36 V operating voltage, and a 36-month warranty make the Elites 9 Heated an excellent choice for year-round professional use.
Key Features:
✅ 9” / Ø 218 mm round LED auxiliary light
✅ Automatically heated glass lens
✅ Heating activates below +10 °C
✅ Heating switches off automatically at +40 °C
✅ Measured luminous flux 9540 lm
✅ Wide and full light pattern
✅ 1 lux range: 368 m
✅ Double Up range up to 780 m
✅ Double Up function for off-road use
✅ 16 LEDs
✅ Color temperature 5000 K
✅ Reference value 20
✅ White / orange dynamic parking light
✅ Dark optics
✅ Tempered glass lens
✅ IP68/IP69K protection
✅ R148, R149, and R10 approvals
✅ 36-month warranty
