OPTIBEAM ELITES 7" 7780LM REF:20
| Product number | 1605-NS2117 |
| Model designation | Elites 7 |
| Shape | Round |
| Diameter | 7” / 178 mm |

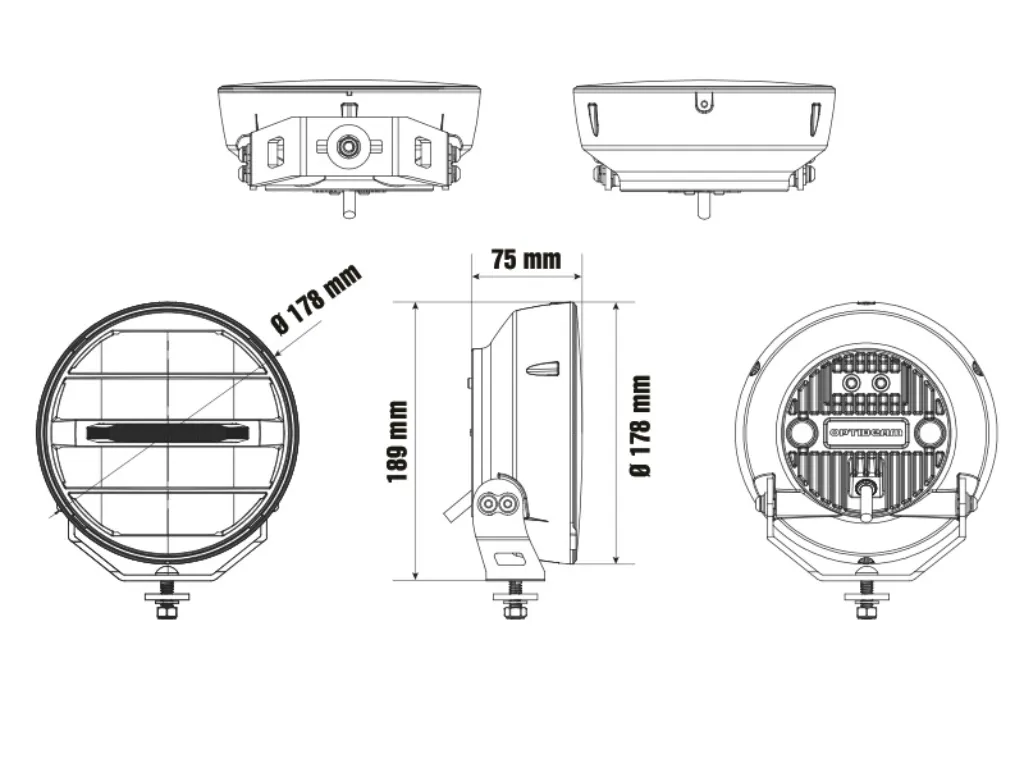

| Dimensions | Ø 178 × 75 mm |
| Weight | 2.00 kg |
| Voltage | 9–36 V |
| Measured luminous flux | 7780 lm |
| Beam pattern | Wide |
| Color temperature | 5000 K |
| Reference number | 20 |
| Range, 1 lux | 332 m |
| Double Up range, 1 lux | 672 m |
| Parking light | White / amber |
| Power consumption | 8.96 A @ 13.7 V |
| Connector | 4-pin DT |
| Cable length | 2.20 m |
| Housing material | Aluminum |
| Housing color | Black |
| Lens material | Polycarbonate |
| IP rating | IP68/69K |
| Certifications | ECE R149, R148, R10 |
| Warranty | 36 months |
Description
Optibeam Elites 7 – Compact Premium LED Auxiliary Light
The Optibeam Elites 7 is a compact 7” round LED auxiliary light that combines powerful light output, long-range performance, and a wide beam pattern. It is an excellent choice for passenger cars, SUVs, vans, and heavy-duty vehicles when a high-performance auxiliary light is needed in a compact and refined form.

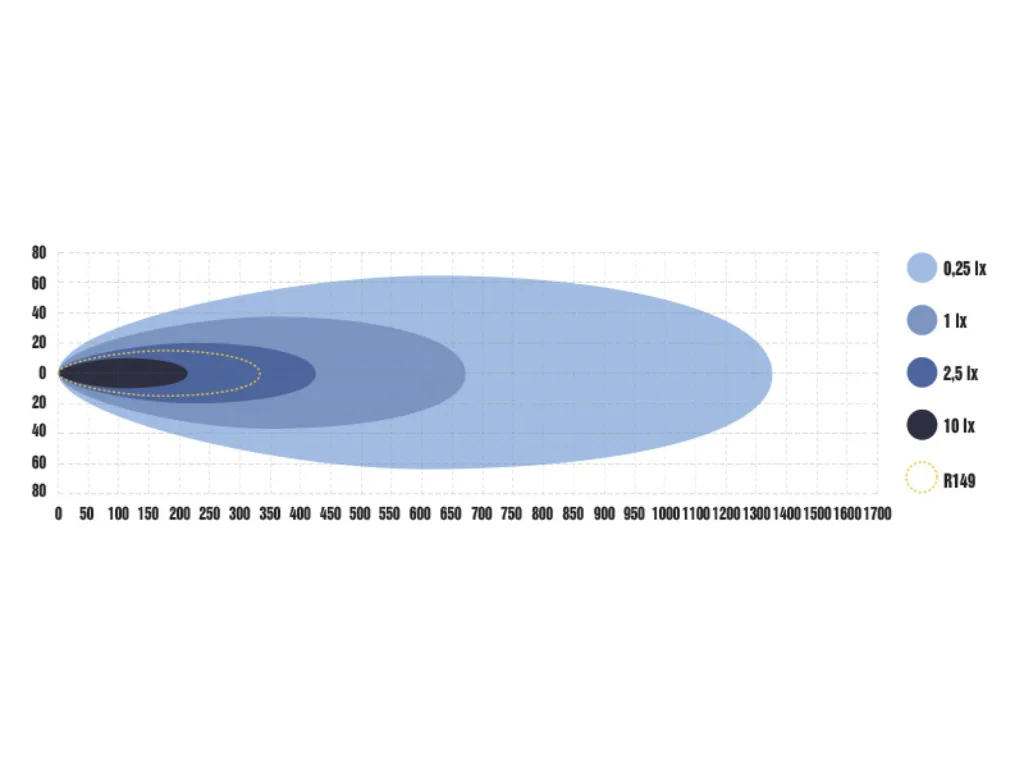

The measured luminous output of the light is 7,780 lumens. In road traffic use, the beam reaches 332 meters at 1 lux intensity with a reference number of 20. With the Double Up function, the light’s full performance is available for off-road use, extending the range up to 672 meters.
The wide beam pattern delivers even illumination both far ahead and to the sides of the road. The 5000 K color temperature provides natural and comfortable light for night driving.

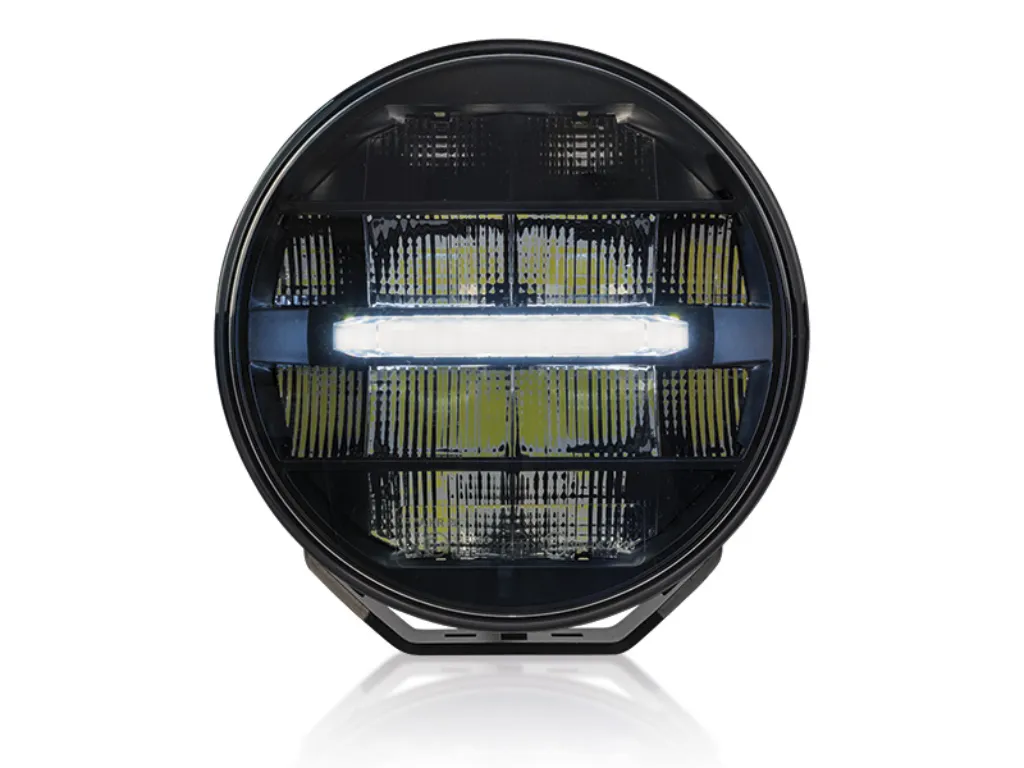

The Elites 7 features dark optics and a black housing for a modern, understated appearance. The dual-color white/orange position light allows for customization to match the vehicle.
An aluminum housing, durable polycarbonate lens, and IP68/69K protection make the light suitable for demanding conditions. The 9–36 V operating voltage allows for use in various vehicles.
Key features:
✅ Compact 7” / Ø 178 mm round LED auxiliary light
✅ Measured luminous output 7,780 lm
✅ Wide and full beam pattern
✅ Range at 1 lux: 332 m
✅ Double Up range up to 672 m
✅ Double Up mode for off-road use
✅ Color temperature 5000 K
✅ Reference number 20

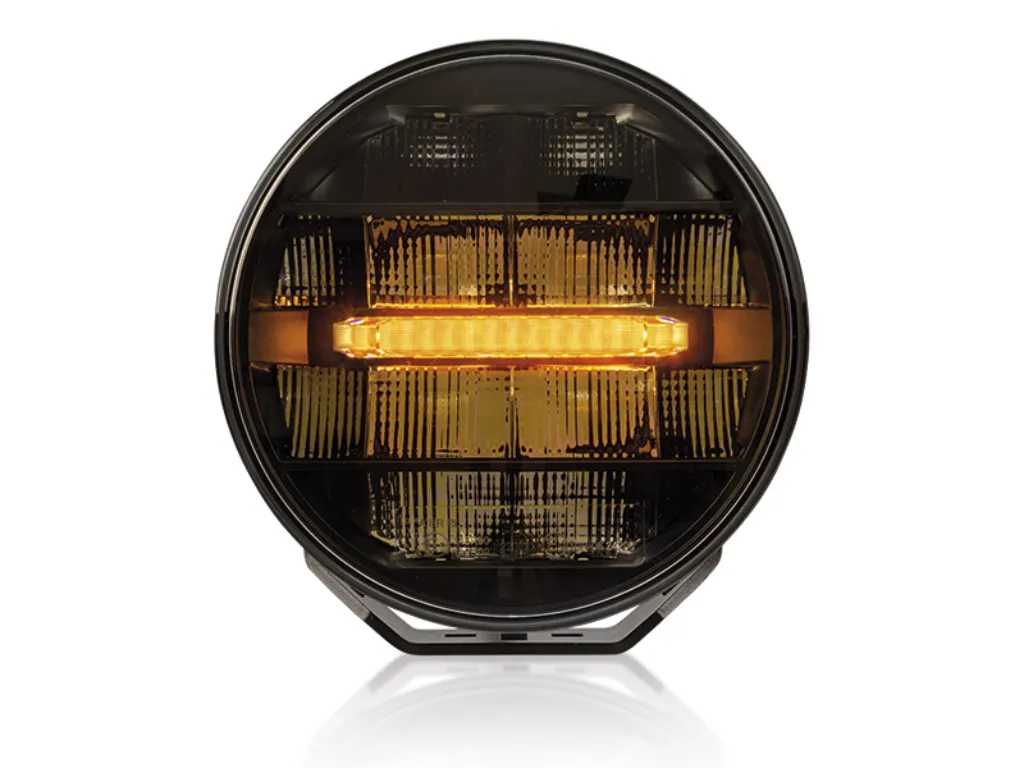

✅ White/orange position light
✅ Dark optics
✅ 9–36 V operating voltage
✅ 4-pin DT connector
✅ Aluminum housing and polycarbonate lens
✅ IP68/69K protection
✅ ECE R149, R148, and R10 approvals
✅ 36-month warranty
